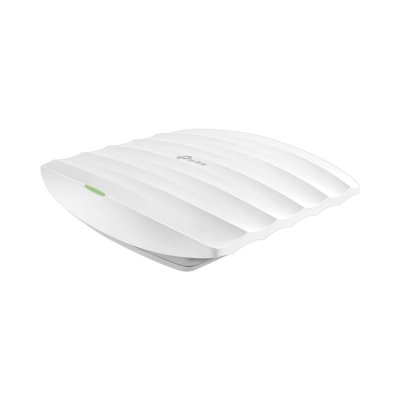

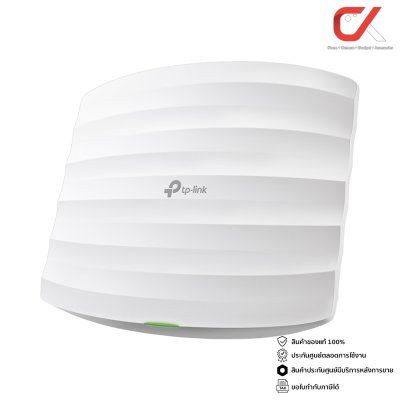

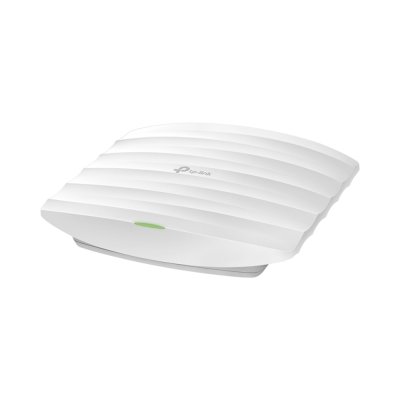

tp-link Omada EAP115 300Mbps Wi-Fi 4 Access Point เครื่องกระจายสัญญาณ
จุดเด่น
- - รองรับ Power over Ethernet

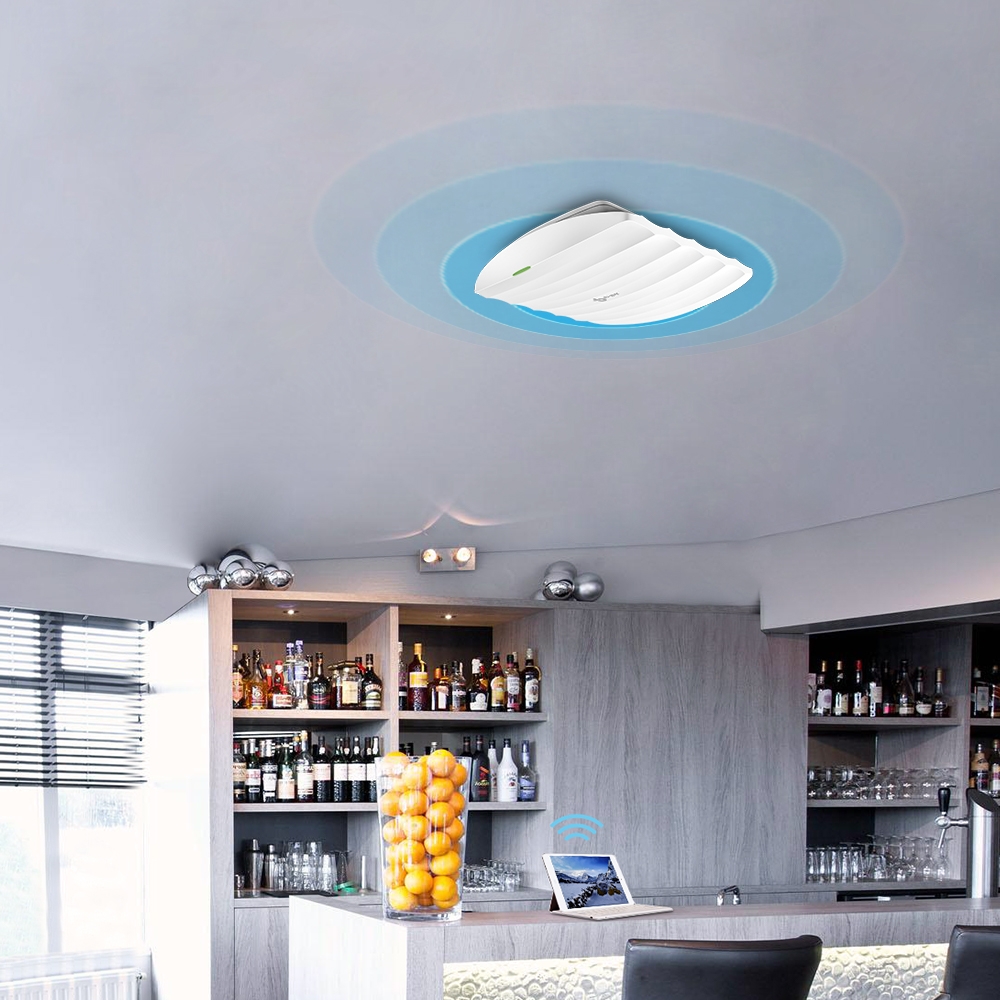

- - ดีไซน์กลมกลืนกับสถานที่
- - รองรับปริมาณไคลเอนต์ได้มากกว่า 100 เครื่อง
- - ดีไซน์กลมกลืนกับสถานที่

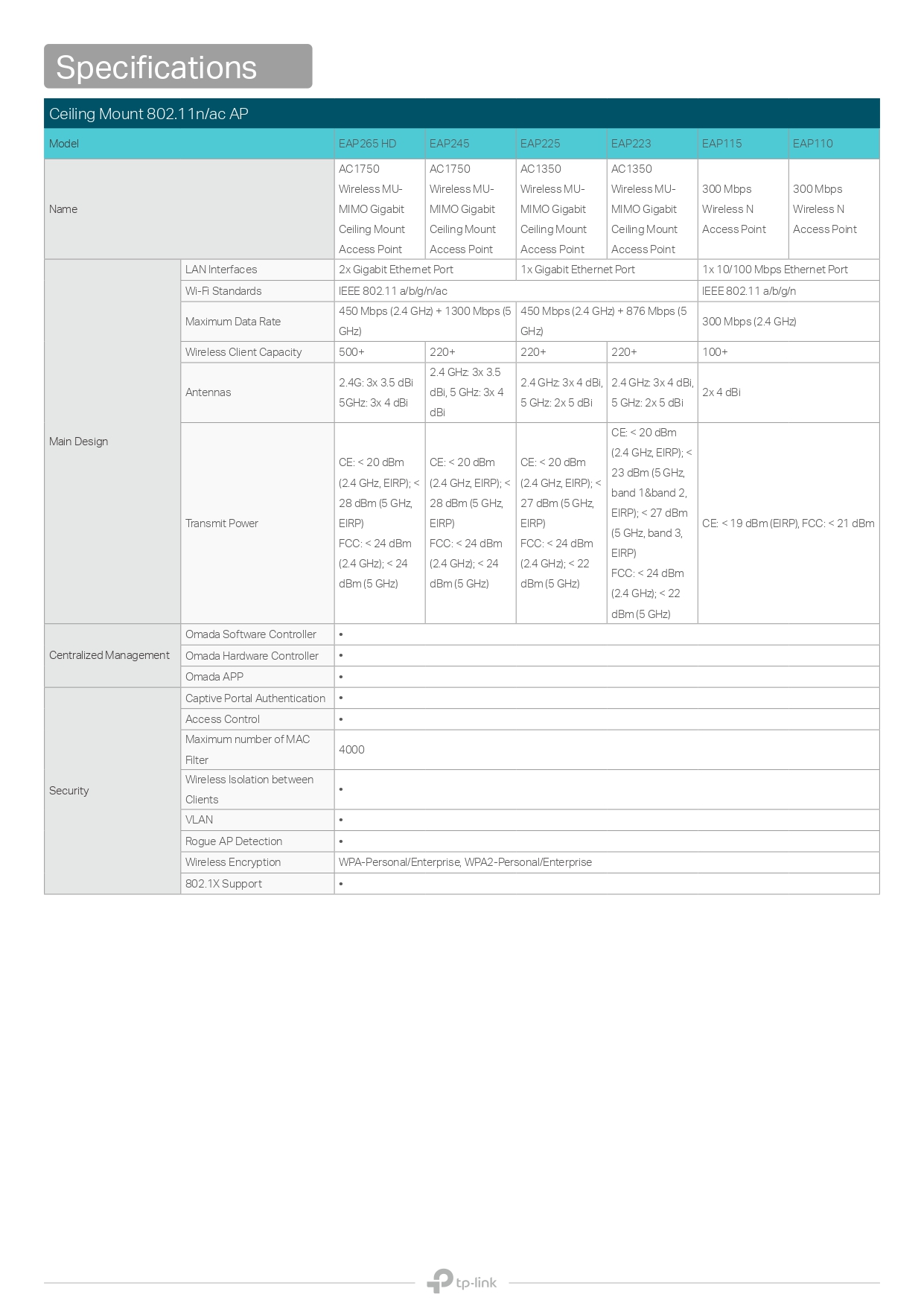

ข้อมูลจำเพาะ
- - Standards and Protocol : IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- - Antenna : Internal 2 x 4dBi Omni
- - Frequency Range : 2.4-2.4835GHz
- - Wireless Transmit Power : CE: 19dBm(EIRP), FCC: 21dBm
Receive Sensitivity
- - 300M: -71dBm@10% PER
- - 150M: -75dBm@10% PER
- - 54M: -78dBm@10% PER
- - 11M: -93dBm@8% PER
- - 6M: -92dBm@10% PER
- - 1M: -96dBm@8% PER
Data Rates
- - 11n : Up to 300Mbps(dynamic)
- - 11g : Up to 54Mbps(dynamic)
- - 11b : Up to 11Mbps(dynamic)
Wireless Security
- - Captive Portal Authentication
- - Access Control
- - Wireless MAC Address Filtering
- - Wireless Isolation Between Clients
- - SSID to VLAN Mapping
- - Rogue AP Detection
- - 802.1X Support
- - 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK

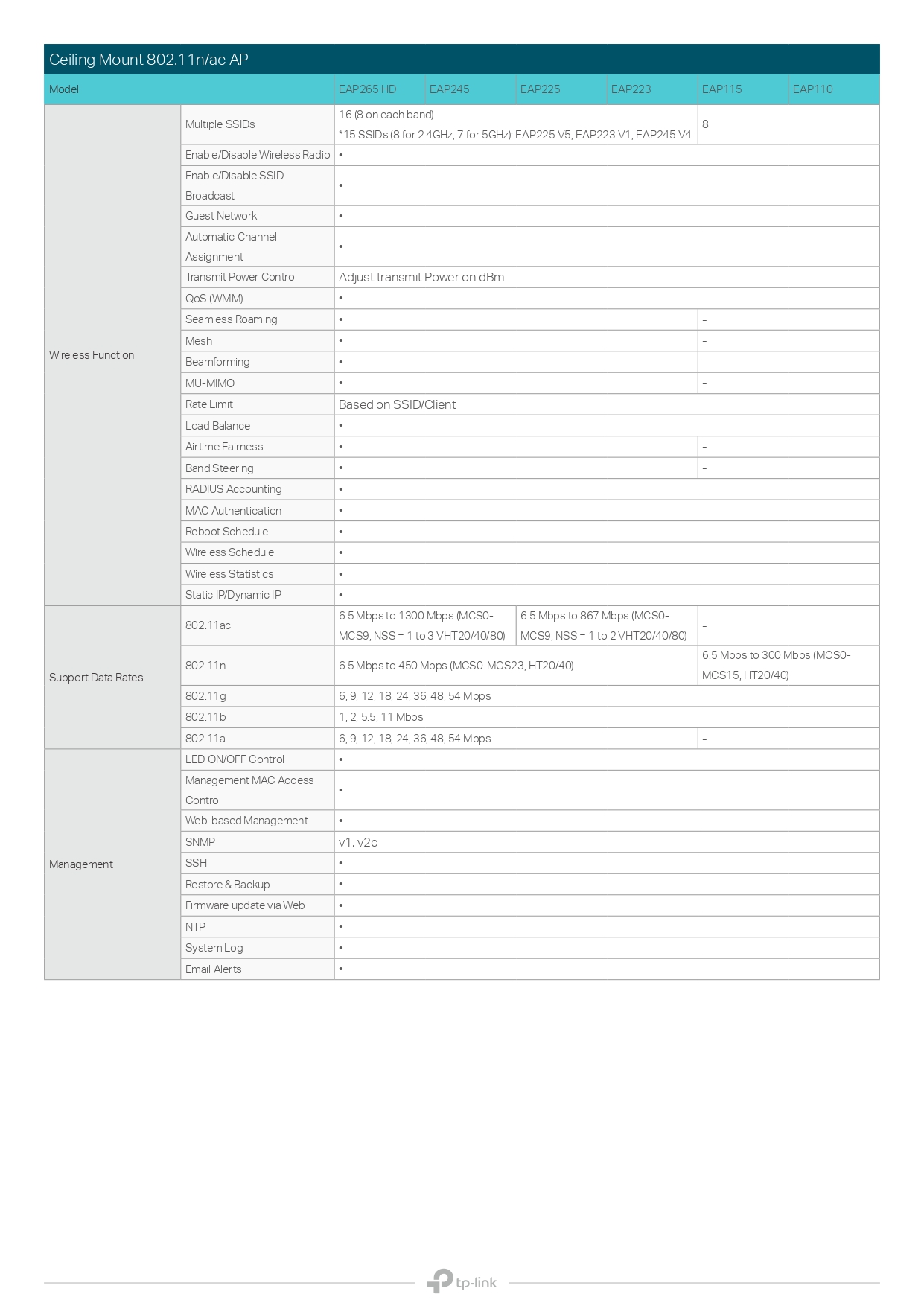

Wireless Features
- - Multiple SSIDs (Up to 8 SSIDs)
- - Enable/Disable Wireless Radio

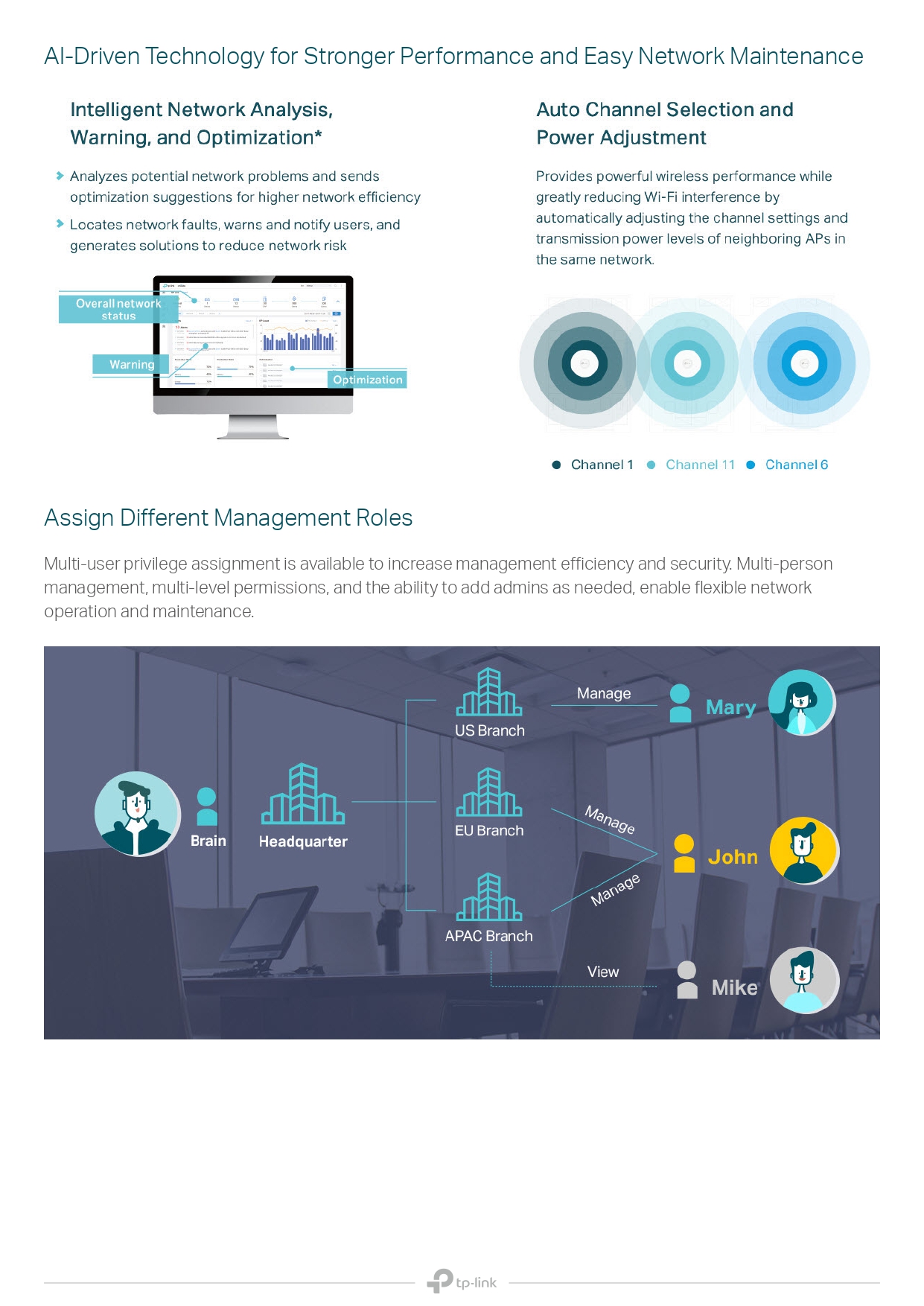

- - Automatic Channel Assignment
- - Transmit Power Control (Adjust Transmit Power on dBm)
- - QoS (WMM)
- - Rate Limit
- - Reboot Schedule
- - Wireless Schedule
- - Wireless Statistics based on SSID/AP/Client
Management / Configuration / Tools

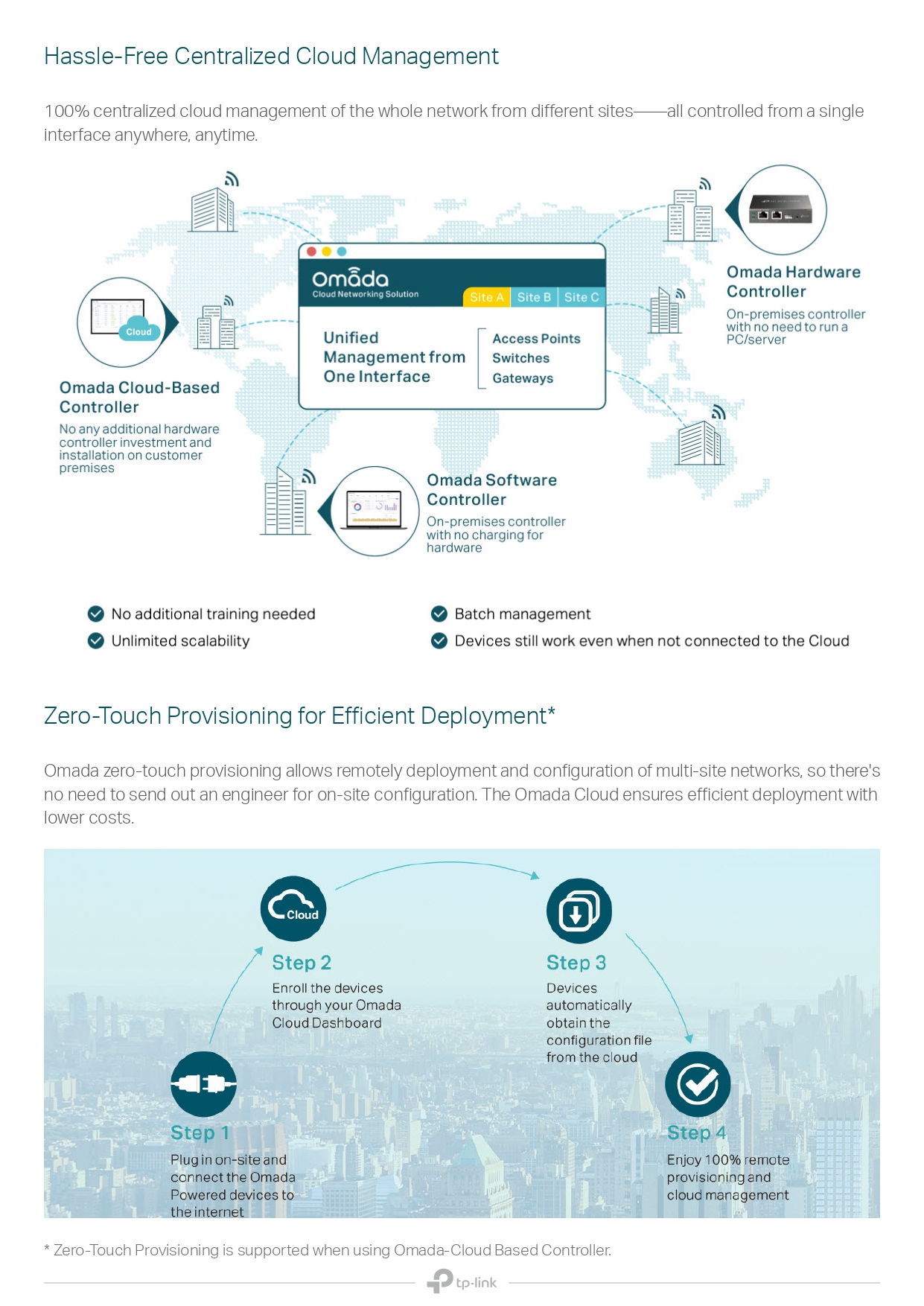

- - Omada Controller Software
- - Email Alerts
- - LED ON/OFF Control
- - Management MAC Access Control
- - SNMP v1,v2c
- - System Logging : Local/Remote Syslog
- - Telnet
- - Web-based Management : HTTP/HTTPS
- - Management VLAN
Support Operating System
- - Microsoft Windows 10/8/7/Vista/XP
การเชื่อมต่อ

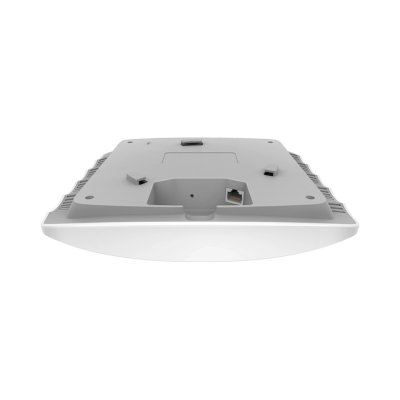

- - Interface : 1 x Fast Ethernet (RJ-45) Port (Support IEEE802.3af PoE)
- - Button : Reset

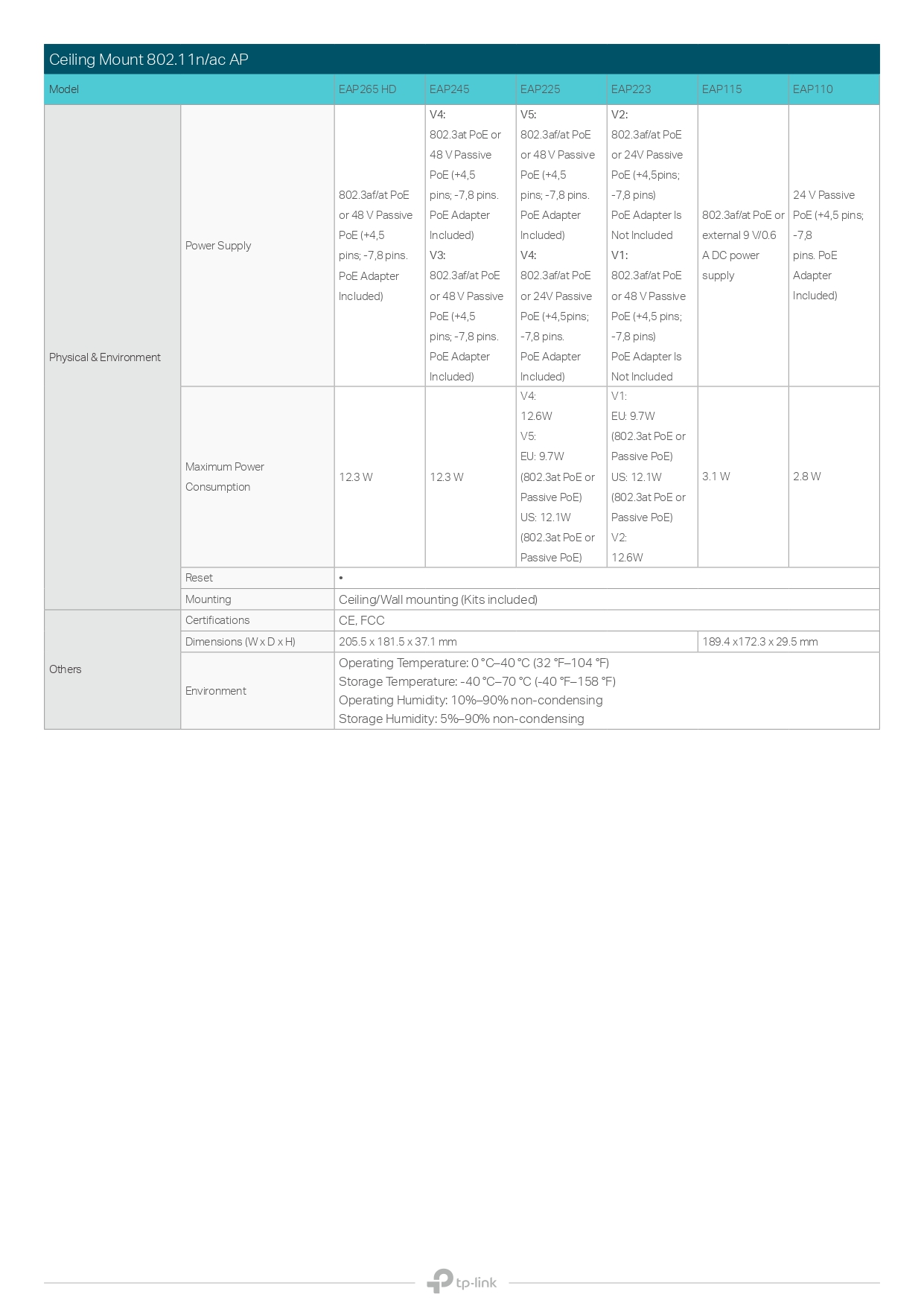

กำลังไฟ
- - Power Supply : PoE or external 9VDC/0.6A power supply
- - Power Consumption : 2.8W
- - PoE : Yes
ข้อมูลทั่วไป
Environment
- - Operating Temperature : 0~40 (32~104)
- - Storage Temperature : -40~70 (-40~158)
- - Operating Humidity : 10%~90% non-condensing
- - Storage Humidity : 5%~90% non-condensing
- - Certifications : CE, FCC, RoHS
Package Contents
- - 300Mbps Wireless N Ceiling Mount Access Point EAP115
- - Power Adapter
- - Mounting Kits
- - Installation Guide
