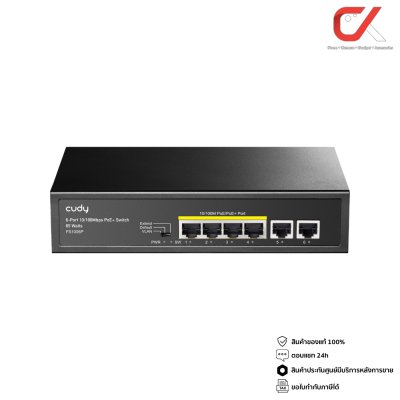

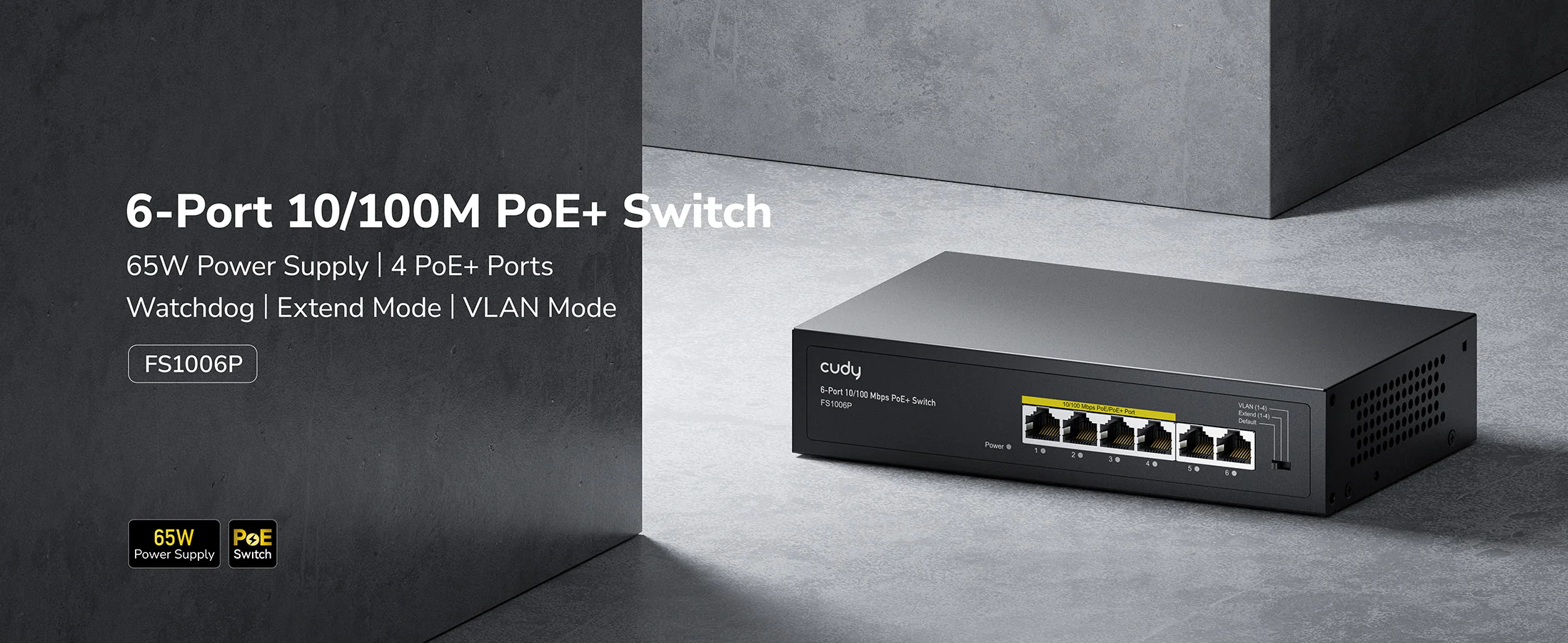

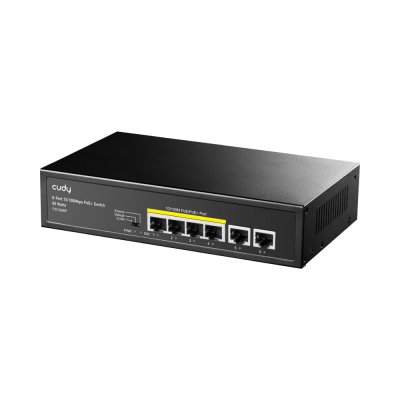

Cudy FS1006P 4-Port 2 Uplink 10/100 Mbps PoE+ Switch 65W สวิตช์ PoE

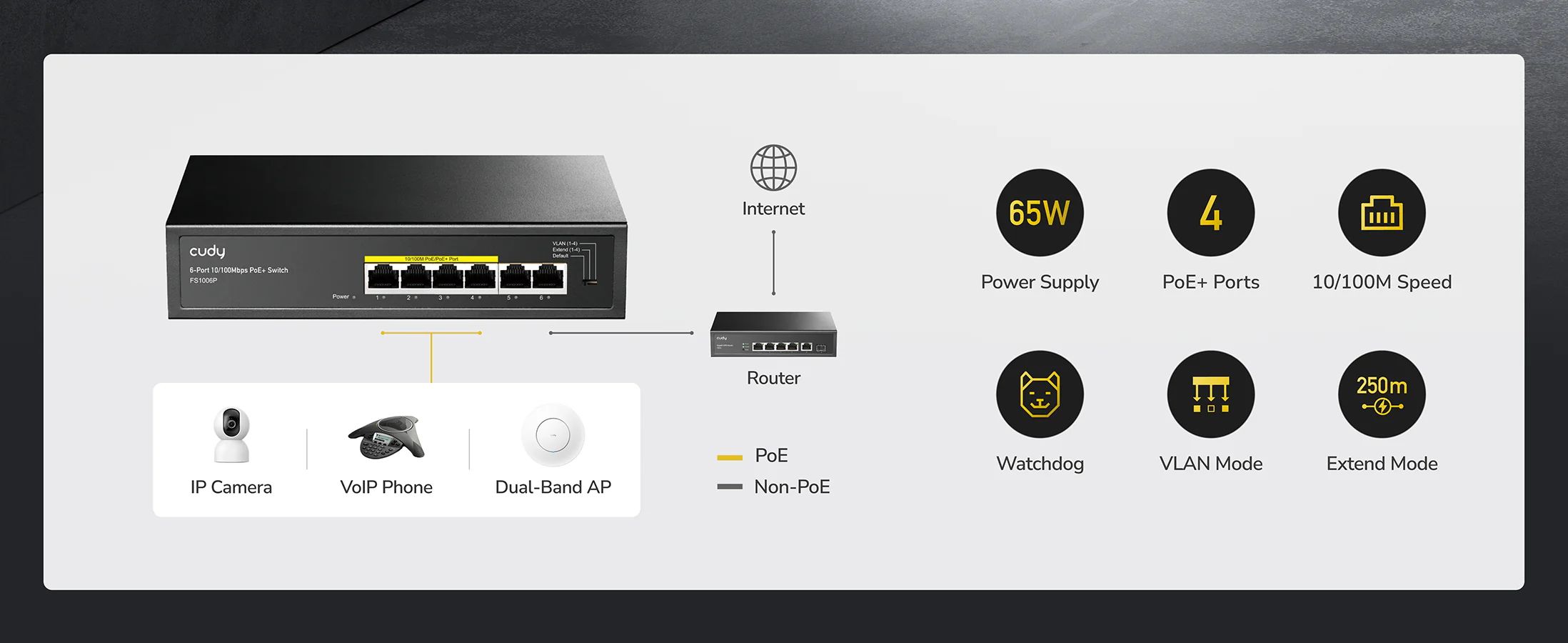

สวิตช์ PoE 6-FE ติดผนังพร้อมแหล่งจ่ายไฟ 65W และระบบระบายความร้อนแบบเงียบ
คุณสมบัติ
- - 4× FE พร้อมโหมด 802.3at/af PoE
- - 2× อัปลิงค์ FE
- - พาวเวอร์ซัพพลาย 65W
- - โหมดเริ่มต้น/VLAN/ขยาย
- - Watchdog ภายใต้ VLAN หรือโหมดขยาย
- - เดสก์ท็อปติดผนัง
- - 200×118×44 มม. (7.87×4.65×1.73'')
- - Lifetime Warranty
Interfaces
10/100 Mbps RJ45 Ports : 6
10/100 Mbps RJ45 PoE Ports : #1~#4
Max Power on a Single PoE Port : 30W

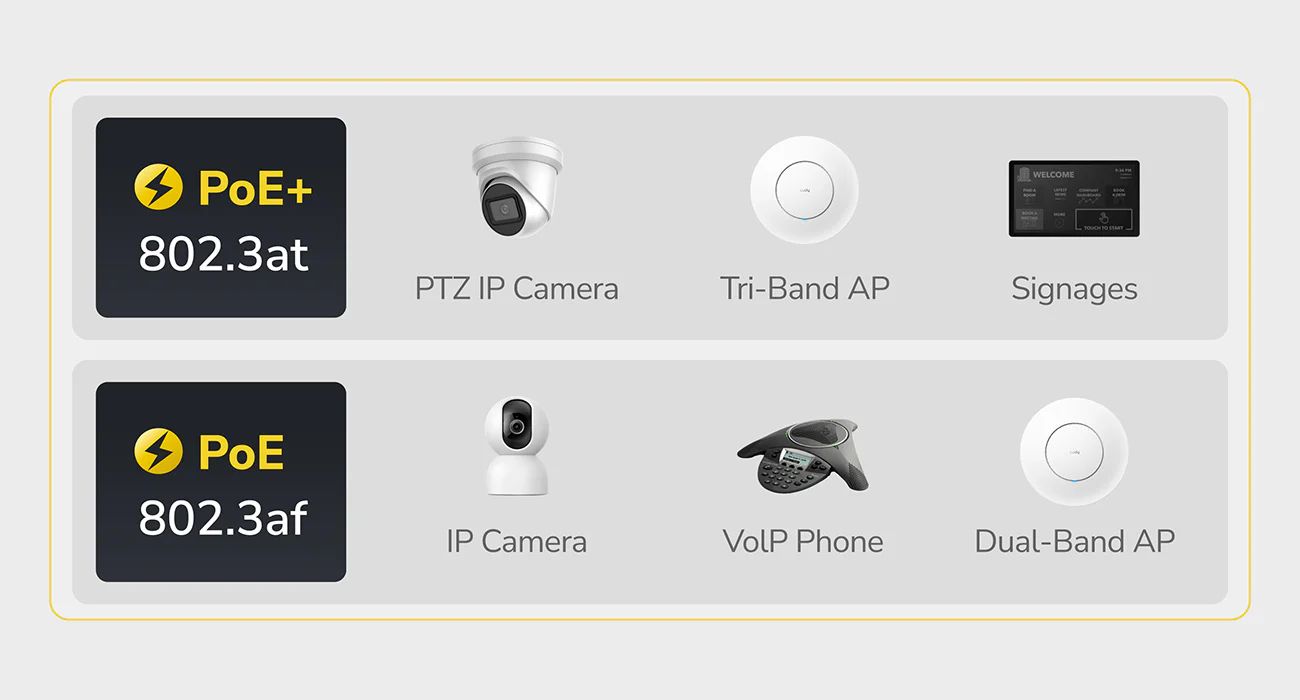

PoE Port Notes : The PoE ports comply with IEEE 802.3at/af standards.
Extend Mode Ports : #1~#4
VLAN Mode Ports : #1~#4
LED
- - Power
- - Link/ACT of Each Ethernet Port
- - DIP Mode (SW)
Power Interfaces : AC Inlet
Physical Buttons : VLAN/Default/Extend DIP Switch
Performance

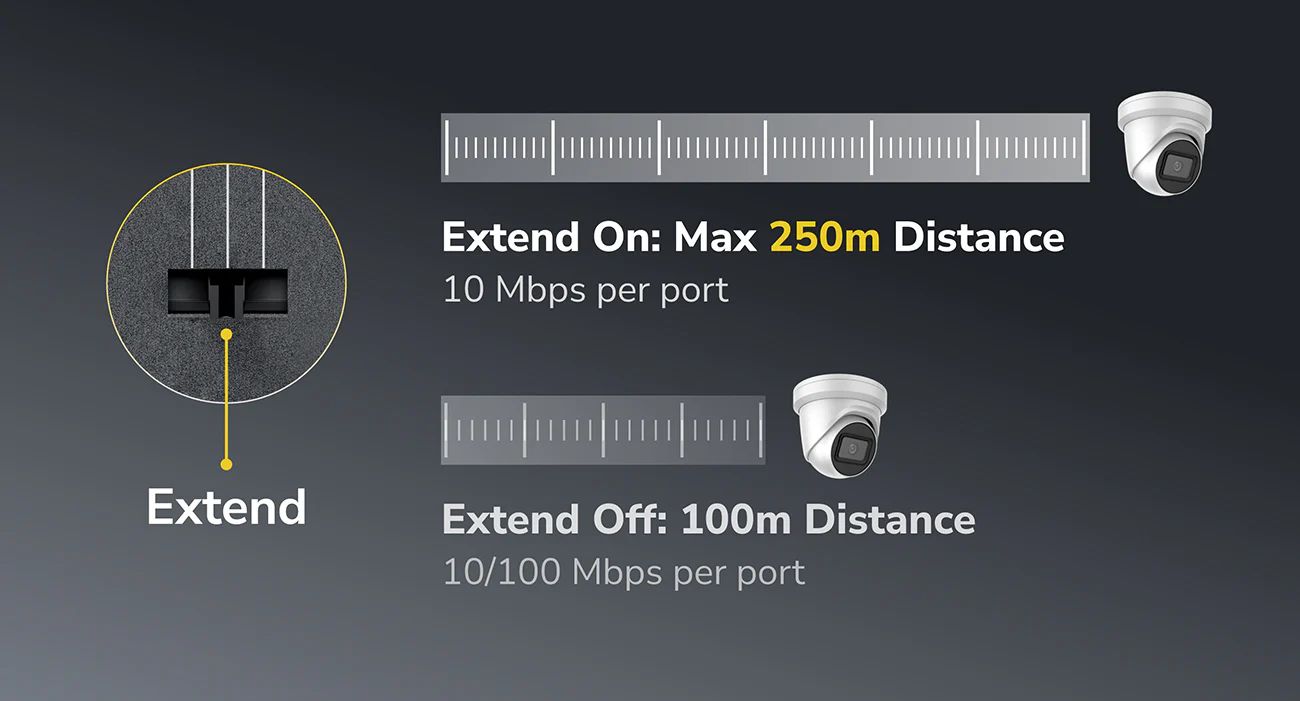

Copper Speed and Distance
- - Cat. 3 or higher cable : 100 meters at 10 Mbps
- - Cat. 5 or higher cable : 100 meters at 100 Mbps
- - Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note : 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
MAC Address Table : 1024
Max Switching Capacity : 1.2 Gbps
Max Forwarding Rate : 0.8928 Mpps
Packet Buffer : 448 Kbit
Power
Power Methods : AC
Power Input : 100-240V~ 50/60Hz
Power Supply : 65W
Max Power Excluding PoE : 1W
Switching
802.3 Protocols
- - 802.3i 10BASE-T
- - 802.3u 100BASE-TX
- - 802.3x Flow Control
- - 802.3af PoE
- - 802.3at PoE
Reliability
Grounding Methods
- - Three-Prong Plug
- - Grounding Point
Environment
- - Operating Temperature: 0~40 (32~104 )
- - Storage Temperature: -40~70 (-40~158 )
- - Operating Humidity: 10~90% non-condensing
- - Storage Humidity: 10~95% non-condensing
Mechanical
Dimension : 200×118×44 mm
7.87×4.65×1.73 inches
Casing Material : Metal
Installation
- Desktop
- Wall-mount

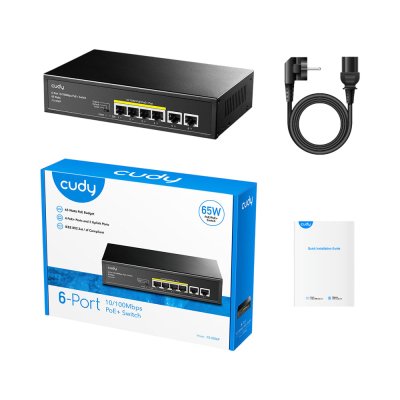

Package Content
- - FS1006P
- - Power Cord
- - Installation Guide
Ordering Information
Retail Package Dimension : 245×190×60 mm
9.65×7.48×2.36 inches
