Cudy FS1010PG 8-Port 2 Uplink GbE 10/100 Mbps PoE+ Switch 120W สวิตช์ PoE
สวิตช์ PoE 8-FE, 2-GE แบบติดผนังพร้อมแหล่งจ่ายไฟ 120W และระบบระบายความร้อนแบบเงียบ
คุณสมบัติ
- - 8× FE พร้อมโหมด 802.at/af PoE
- - 2× อัพลิงค์ GbE
- - พาวเวอร์ซัพพลาย 120W

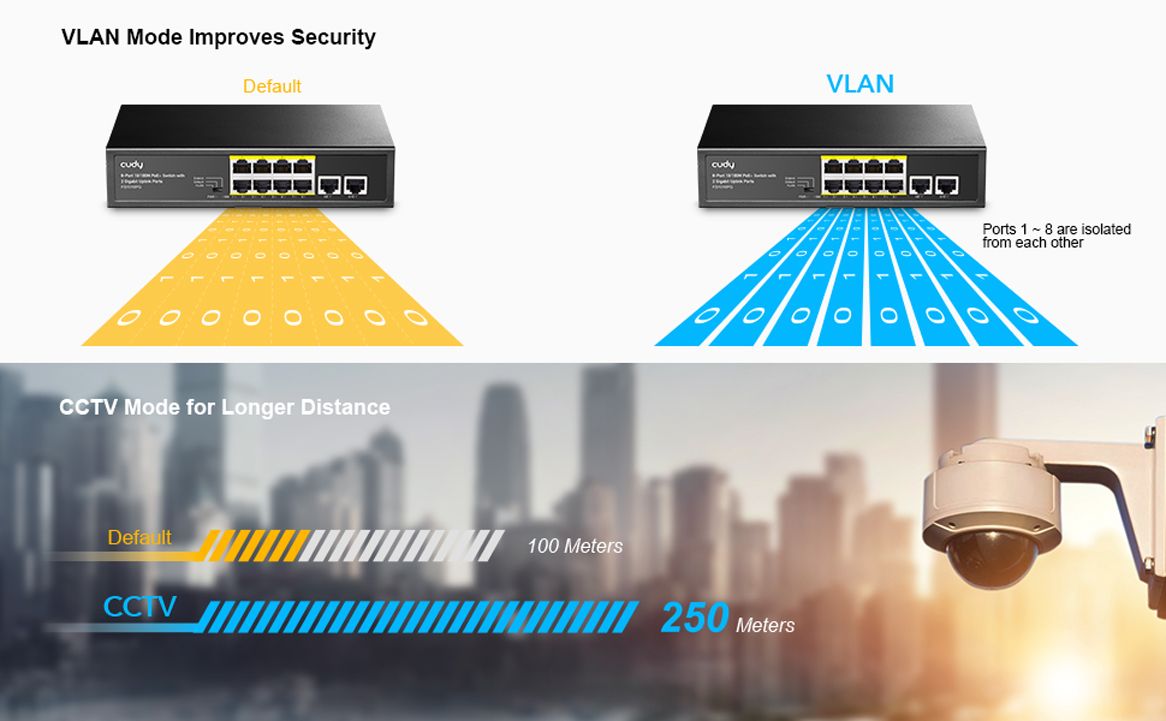

- - โหมดเริ่มต้น/VLAN/ขยาย
- - Watchdog ภายใต้ VLAN หรือโหมดขยาย
- - เดสก์ท็อปติดผนัง
- - 200×118×44 มม. (7.87×4.65×1.73'')
- - Lifetime Warranty
ข้อมูลจำเพาะ
Interfaces
Gigabit RJ45 Ports : 2
10/100 Mbps RJ45 Ports : 8
10/100 Mbps RJ45 PoE Ports : #1~#8

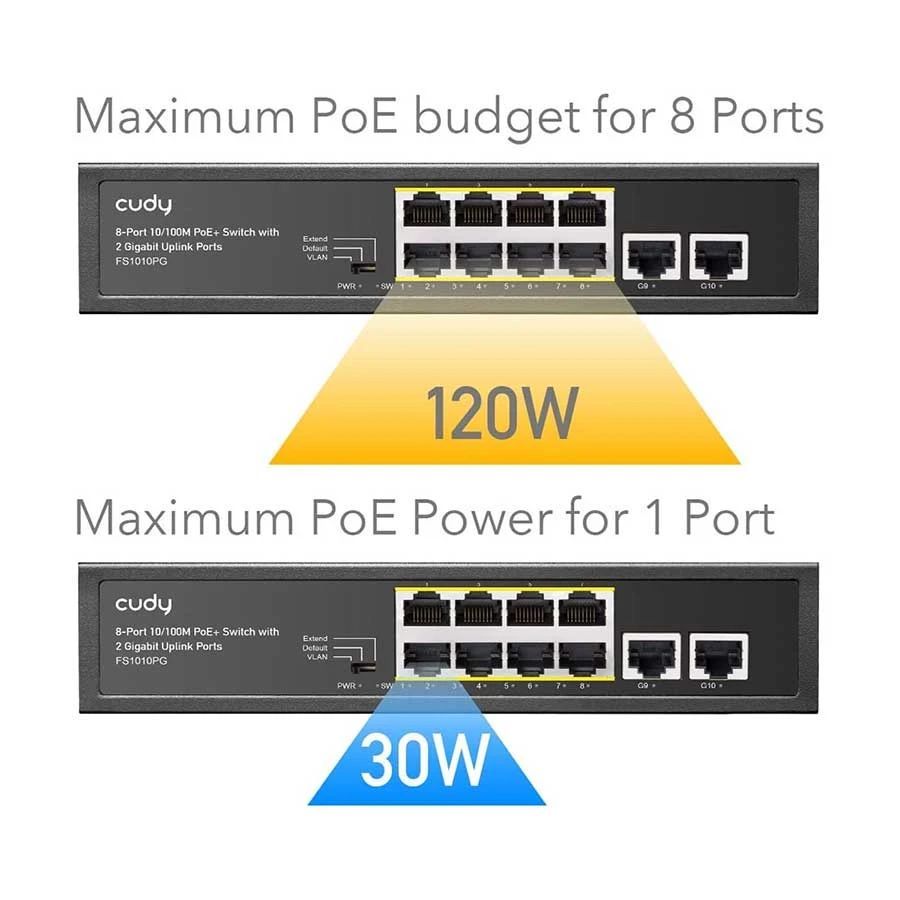

Max Power on a Single PoE Port : 30W
PoE Port Notes : The PoE ports comply with IEEE 802.3at/af standards.

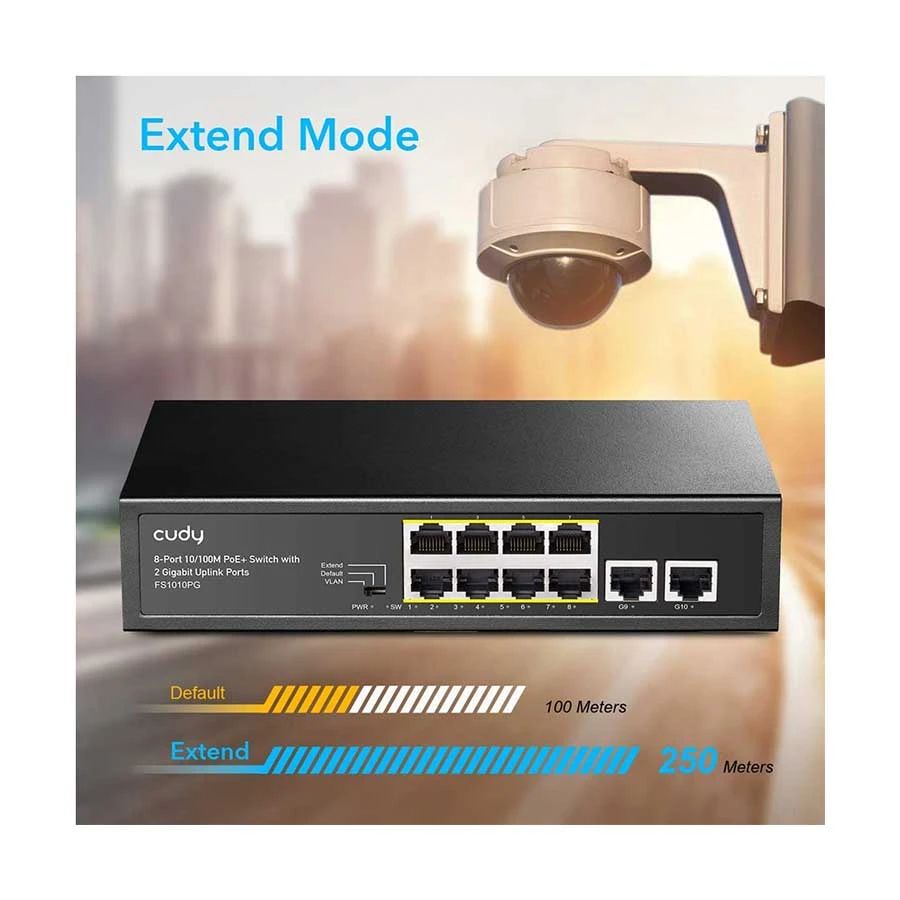

Extend Mode Ports : #1~#8
VLAN Mode Ports : #1~#8
LED
- - Power
- - Link/ACT of Each Ethernet Port
- - DIP Mode (SW)

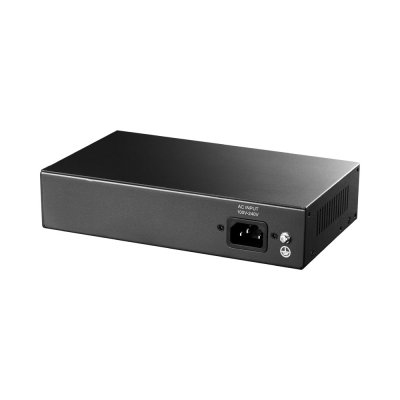

Power Interfaces : AC Inlet
Physical Buttons : VLAN/Default/Extend DIP Switch
Performance
Copper Speed and Distance
- - Cat. 3 or higher cable : 100 meters at 10 Mbps
- - Cat. 5 or higher cable : 100 meters at 100 Mbps
- - Cat. 5e or higher cable : 100 meters at Gigabit
- - Cat. 5e or higher cable : 250 meters at 10 Mbps
Copper Speed and Distance Note : Gigabit speed is only available on the uplink ports. 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
MAC Address Table : 2048
Max Switching Capacity : 5.6 Gbps
Max Forwarding Rate : 4.166 Mpps
Packet Buffer : 2 Mbit
Power
Power Methods : AC
Power Input : 100-240V~ 50/60Hz
Power Supply : 120W
Max Power Excluding PoE : 5W
Switching
802.3 Protocols
- - 802.3i 10BASE-T
- - 802.3u 100BASE-TX
- - 802.3ab 1000BASE-T
- - 802.3x Flow Control
- - 802.3af PoE
- - 802.3at PoE
Reliability
Grounding Methods : Three-Prong Plug
Environment
- - Operating Temperature : 0~40 (32~104 )
- - Storage Temperature : -40~70 (-40~158 )
- - Operating Humidity : 10~90% non-condensing
- - Storage Humidity : 10~95% non-condensing
Mechanical
Dimension : 200×120×45 mm
7.87×4.72×1.77 inches
Product Weight : 630 g (22.22 oz.)
Casing Material : Metal
Installation
- - Desktop
- - Wall-mount

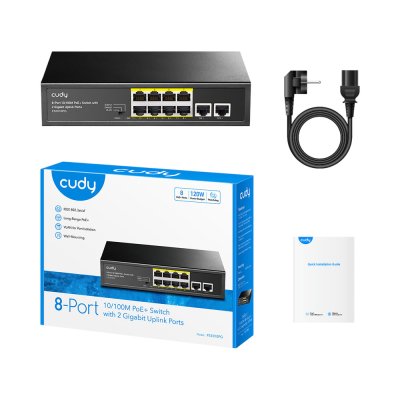

Package Content
- - FS1010PG
- - Power Cord
- - Installation Guide
Ordering Information
Retail Package Weight : EU 936 g (33.02 oz.)
Carton Net Weight : EU 15.0 kg (33.07 lbs)
Carton Gross Weight : EU 15.7 kg (34.61 lbs)
