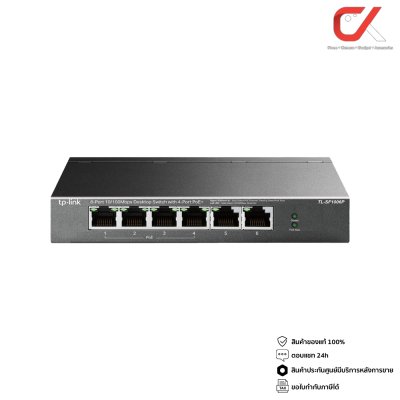

Tp-Link TL-SF1006P 6-Port 10/100Mb Desktop 4-Port PoE+ Switch 67W สวิตซ์

Tp-Link TL-SF1006P 6-Port 10/100Mb Desktop 4-Port PoE+ Switch 67W สวิตซ์

รายละเอียดสินค้า

• - 6× 10/100 Mbps RJ45 ports
• - 4× PoE+ ports transfer data and power on individual cables
• - Works with IEEE 802.3af/at compliant PDs
• - Up to 250m data and power transmitting range under Extend Mode**
• - Priority Mode ensures high priority of ports 12 to guarantee the quality of sensitive application
• - PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• - Supports PoE Power up to 30 W for each PoE port
• - Supports PoE Power up to 67 W for all PoE ports

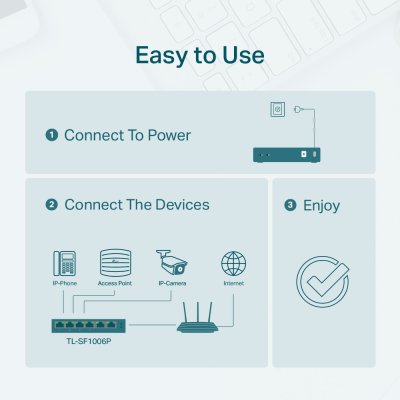

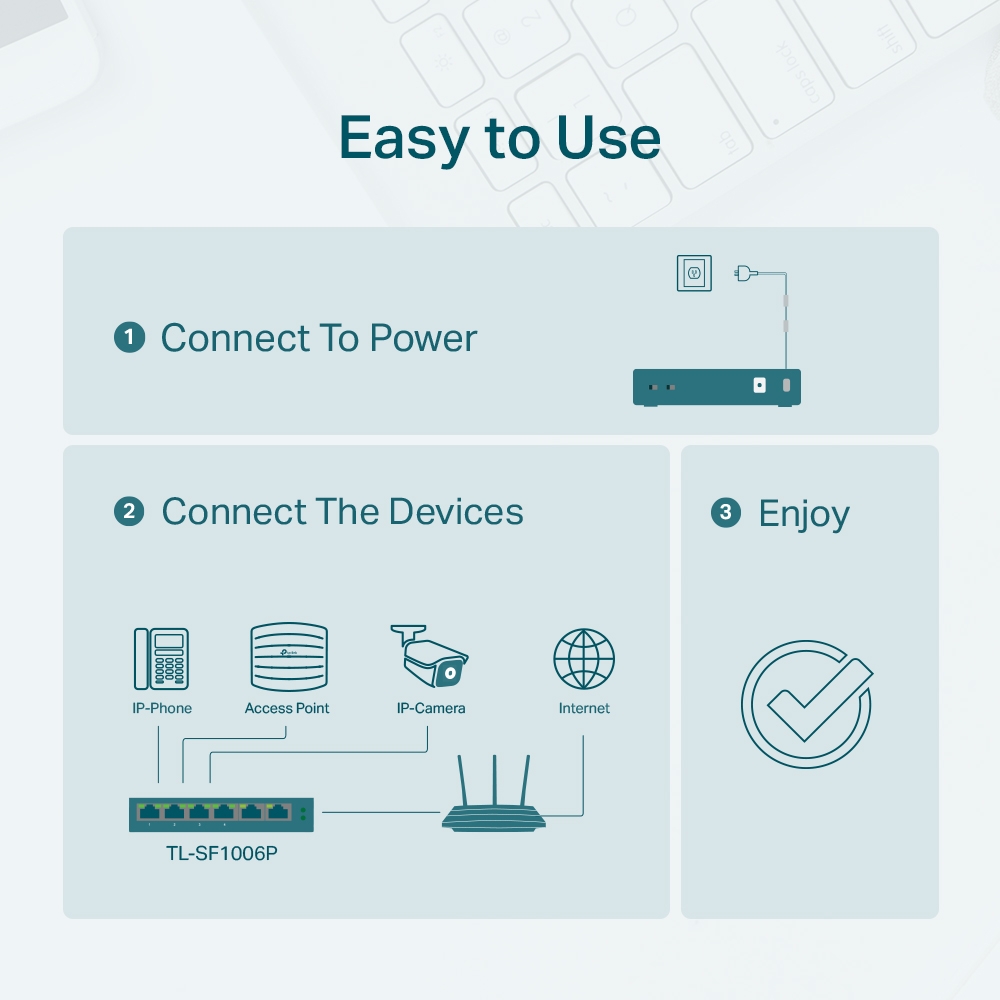

• - Plug and play with no configuration required
• - Lifetime Warranty

HARDWARE FEATURES

Interface

• - 6× 10/100 Mbps RJ45 Ports (ports 14 support 802.3af/at PoE+)
• - AUTO Negotiation
• - AUTO MDI/MDIX

Network Media

• - 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m)
• - EIA/TIA-568 100Ω STP (maximum 100m)
• - 100BASE-TX : UTP category 5, 5e cable (maximum 100m)
• - EIA/TIA-568 100Ω STP (maximum 100m)
• - Fan Quantity : Fanless
• - Physical Security Lock : Yes
• - External Power Supply : External Power Adapter (Output: 53.5 V DC / 1.31 A)
• - Packet Forwarding Rate : 0.8928 Mpps

PoE Ports (RJ45)

• - Standard: 802.3 af/at compliant
• - PoE Ports: Ports 14
• - Power Supply : 67 W
• - Mac Address Table : 2K
• - Jumbo Frame : 2 KB
• - Switching Capacity : 1.2 Gbps
• - Dimensions ( W x D x H ) : 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)

Max Power Consumption

• - 2.52 W (220 V / 50 Hz, no PD connected)
• - 75.4 W (220 V / 50 Hz, with 67 W PD connected)

Max Heat Dissipation

• - 8.59 BTU/h(no PD connected)
• - 257.11 BTU/h(with 67 W PD connected)

SOFTWARE FEATURES

• - Transmission Method : Store-And-Forward

Advanced Functions

• - Compatible With IEEE 802.3af/at Compliant PDs
• - Extend Mode Button (Ports 14)
• - Priority Mode Button (Ports 12)
• - PoE Auto Recovery (Ports 1-4)
• - Mac Address Auto-Learning and Auto-Aging
• - IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode

OTHERS

Certification : FCC, CE, RoHS

Package Contents

• - TL-SF1006P
• - Power Adapter
• - Installation Guide

Environment

• - Operating Temperature : 040 (32104 )
• - Storage Temperature : -4070 (-40158 )
• - Operating Humidity : 1090% RH non-condensing
• - Storage Humidity : 590% RH non-condensing
