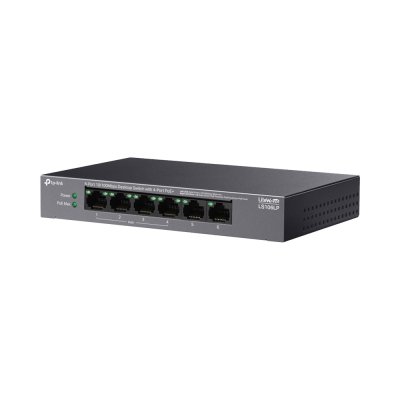

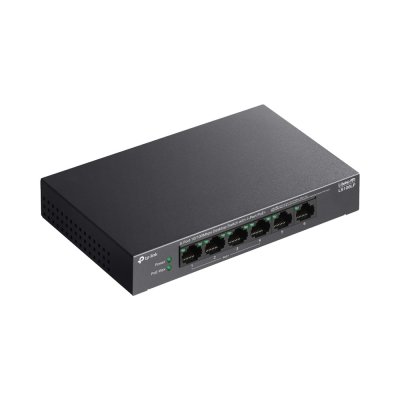

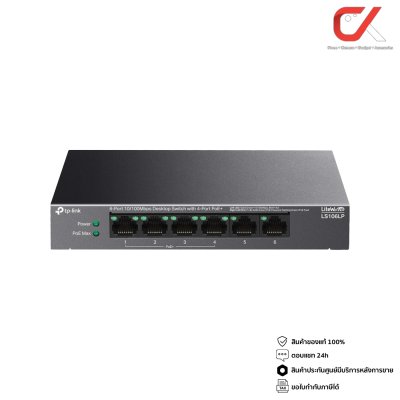

Tp-Link TL-LS106LP 6-Port 10/100Mb Desktop 4-Port PoE+ Switch 41W สวิตซ์ฮับ
รายละเอียดสินค้า

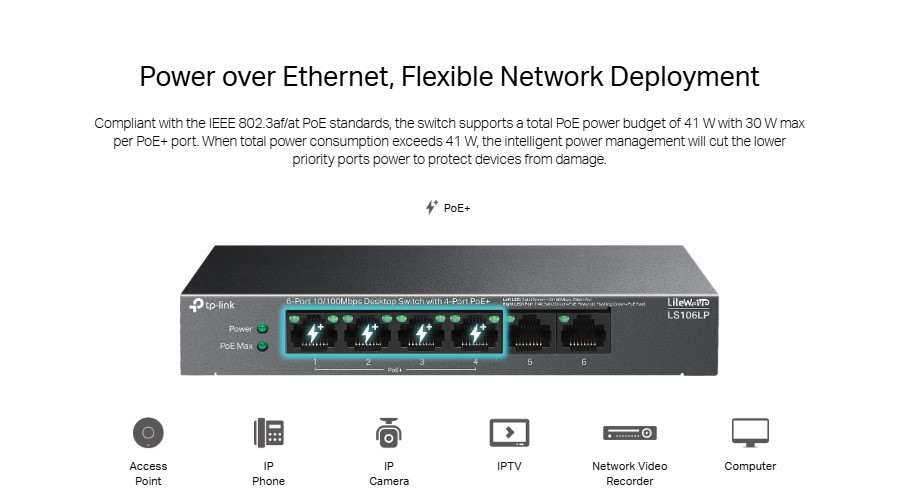

- - 4× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port
- - 41 W total PoE budget
- - Up to 250m data and power transmitting range under Extend Mode
- - Automatically reboots your dropped or unresponsive PoE-powered devices.

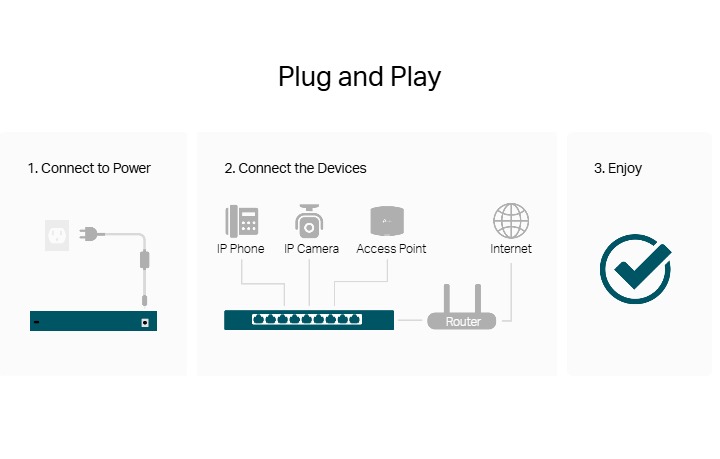

- - Simply plug and play for instant connectivity with no configuration required.
- - Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
- - Desktop / Wall-mounting
- - Lifetime Warranty

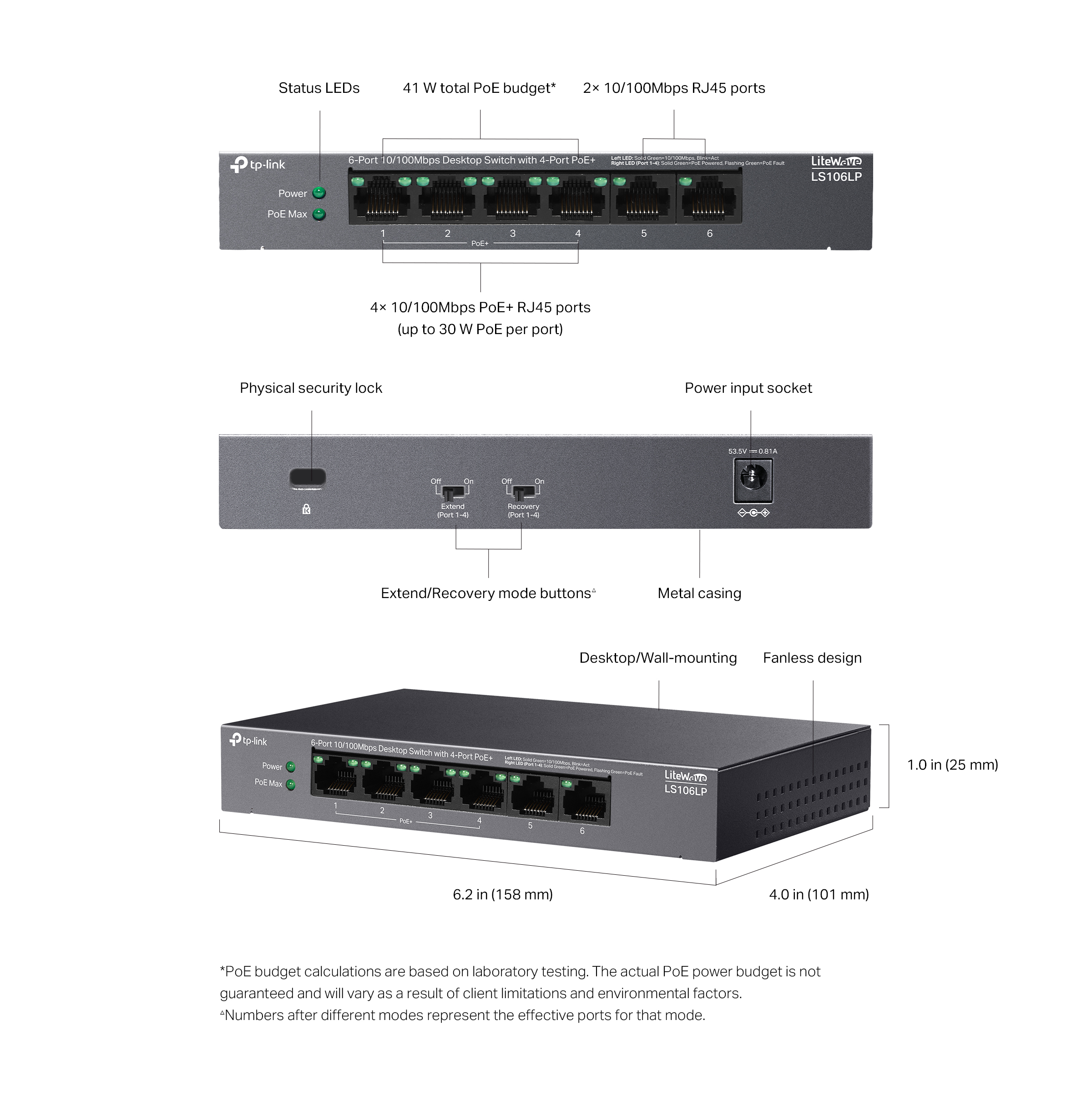

Interface
- - 6× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ Ports)
- - AUTO Negotiation
- - AUTO MDI/MDIX
- Network Media
- - 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
- - 100BASE-TX : UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
- - Fan Quantity : Fanless
Installation
- - Desktop
- - Wall Mounting
- - Power Supply : External Power Adapter (Output : 53.5VDC / 0.81A)
- LED
- - Power
- - Link/Act
- - PoE Status
- - PoE MAX
- PoE Ports (RJ45)
- - Standard: 802.3 af/at compliant
- - PoE Ports: Ports 14, up to 30 W PoE output per port
- - Power Supply : 41 W
- - Dimensions ( W x D x H ) : 6.2×4.0×1.0 in (158×101×25 mm)
Max. Power Consumption
- - 2.53 W (220 V/50 Hz no PD connected)
- - 47.76 W (220 V/50 Hz with 41 W PD connected)
Max. Heat Dissipation
- - 8.61 BTU/h (220 V/50 Hz no PD connected)
- - 162.38 BTU/h (220 V/50 Hz with 41 W PD connected)
PERFORMANCE
- - Switching Capacity : 1.2 Gbps
- - Packet Forwarding Rate : 0.8928 Mpps
- - MAC Address Table : 2K
- - Jumbo Frame : 2 KB
SOFTWARE FEATURES
Advanced Features

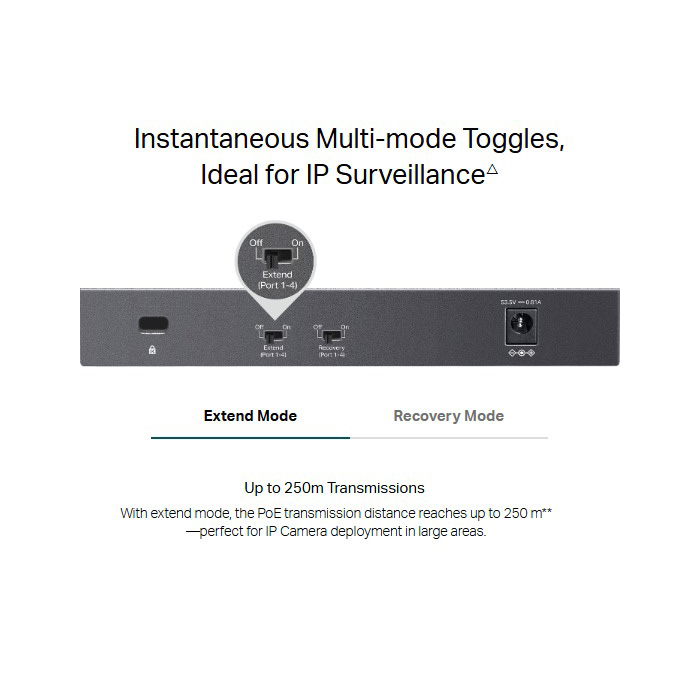

- - Extend Mode : Ports 14
- - PoE Auto Recovery : Ports 1-4
- - Compatible With IEEE 802.3af/at Compliant PDs
- - Mac Address Auto-Learning and Auto-Aging
- - IEEE 802.3x Flow Control
- - Green Technology
- - Transmission Method : Store and Forward
OTHERS
Certification : CE, FCC, RoHS

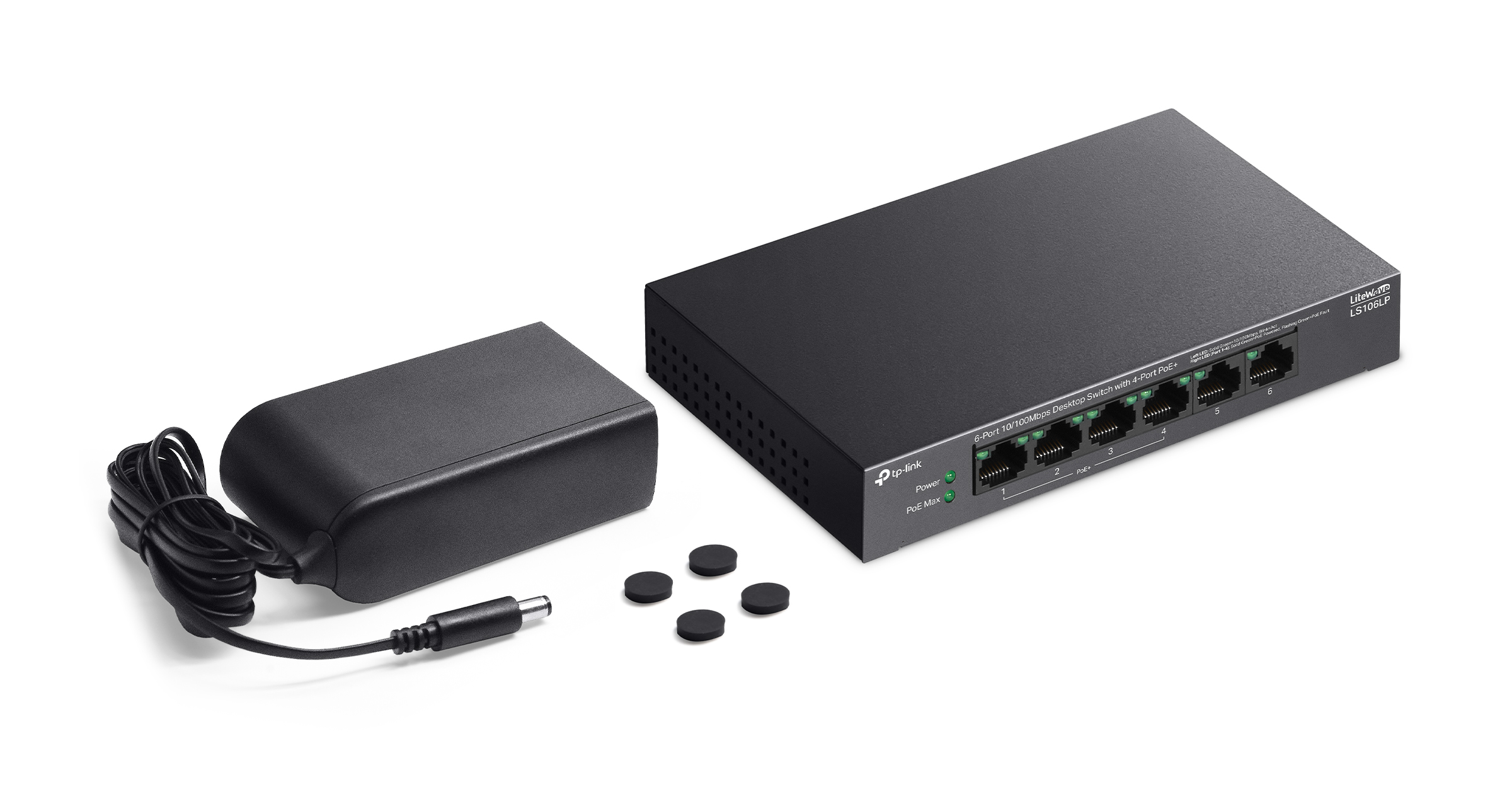

Package Content
- - LS106LP
- - Power Adapter
- - Installation Guide
Environment
- - Operating Temperature : 040 (32104 )
- - Storage Temperature : -4070 (-40158 )
- - Operating Humidity : 1090% RH non-condensing
- - Storage Humidity : 590% RH non-condensing
