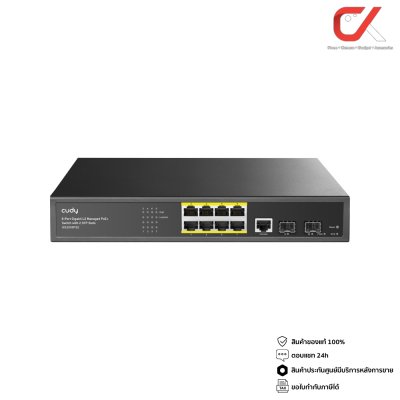

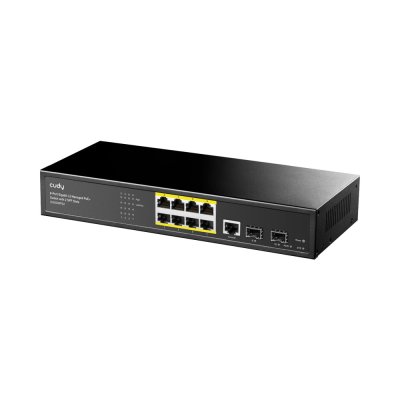

Cudy GS2008PS2 8-Port 2 SFP Slots Gigabit Managed PoE+ Switch สวิตช์ PoE
สวิตช์ PoE 8-GbE, 2-SFP, เลเยอร์ 2แบบติดตั้งบนชั้นวางพร้อมแหล่งจ่ายไฟ 130W และระบบระบายความร้อนแบบเงียบ
คุณสมบัติ
- - 8× GbE พร้อมโหมด 802.3at/af PoE
- - 2× กิกะบิต SFP
- - พาวเวอร์ซัพพลาย 120W
- - L2 การจัดการคุณสมบัติ
- - เดสก์ท็อป, แร็คเมาท์
- - 261×181×44 มม. (10.28×7.13×1.73)
- - Lifetime Warranty
ข้อมูลจำเพาะ
Interfaces
1.25G SFP Slots : 2
Gigabit RJ45 PoE Ports : 8
Max Power on a Single PoE Port : 30W
PoE Port Notes : PoE ports support 802.3at/af standards.
Shielded RJ45 Port : True
Console Ports : 1× RJ45
LED
- - Power
- - System
- - Link/ACT of Each Ethernet Port
- PoE Status of Each PoE Port

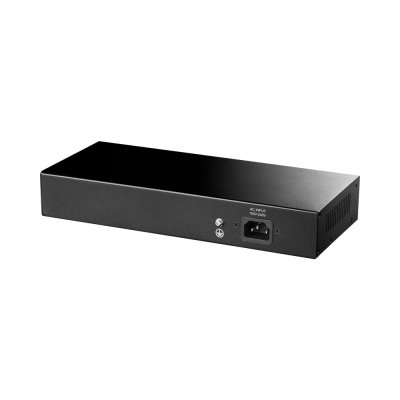

Power Interfaces : AC Inlet
Physical Buttons : Reset Button
Performance
Copper Speed and Distance
- - Cat. 3 or higher cable : 100 meters at 10 Mbps
- - Cat. 5 or higher cable : 100 meters at 100 Mbps
- - Cat. 5e or higher cable : 100 meters at Gigabit
Optical Spec and Distance : Depends on the Installed Optical Module
MAC Address Table : 8192
VLANs : 4096
Max Switching Capacity : 20 Gbps
Max Forwarding Rate : 14.88 Mpps
Jumbo Frame : 9.6 KB
Packet Buffer : 4 Mbit
Power
Power Methods : AC
Power Input : 100-240V~ 50/60Hz
Max Power Consumption : 130W
Max Power Excluding PoE : 12W
Network
802.3 Protocols
- - 802.3i 10BASE-T
- - 802.3u 100BASE-T
- - 802.3ab 1000BASE-T
- - 802.3z 1.25 Gbps over Fiber
- - 802.3x Flow Control
- - 802.3af PoE
- - 802.3at PoE
Switching
802.3 Protocols
- - 802.3i 10BASE-T
- - 802.3u 100BASE-TX
- - 802.3ab 1000BASE-T
- - 802.3z 1000BASE-X
- - 802.3x Flow Control
- - 802.3af PoE
- - 802.3at PoE
802.1 Protocols
- - 802.1d: STP
- - 802.1s: MSTP
- - 802.1p: LAN Layer 2 QoS/CoS
- - 802.1q: VLAN Bridge Operation
- - 802.1w: RSTP
- - 802.1ab: LLDP/LLDP-MED
- - 802.1x User Authentication
Port Management
- - PoE Priority
- - PoE Watchdog On/Off
- - PoE Wattage/Voltage/Current Status
- - PoE Time Schedule
- - Port On/Off
- - Port Negotiation Speed
- - Port Trunk (Static Aggregation)
- - 802.3ad LACP (Active Aggregation)
- - Port Mirror
- - Data Rate Limit
- - Jumbo Frame Settings
- - Storm Control
- - Traffic Monitor
- - MAC Address Management
- - EEE (802.3az)
L2 Features
- - IGMP Snooping
- - Loop Prevention
- - DHCP Snooping
- - STP/RSTP
- - LLDP Config and Neighbors
- - MTU VLAN
- - Port-Based VLAN
- - 802.1Q VLAN
- - Voice VLAN
- - Protocol VLAN
- - Surveillance VLAN
- - DSCP QoS
- - 802.1p QoS
- - Port-Based QoS
- - GVRP
L3 Features
- - Static Routing
- - ARP Proxy
- - Dynamic ARP
- - Interface Configuration
- - IMPV Binding
- - IP Source Guard
- - UDLD
- - ACL (Layer 2 - Layer 4)
- - AAA
- - RADIUS
- - TACACS+
- - Management VLAN
Reliability
Grounding Methods : Three-Prong Plug
Environment
- - Operating Temperature: -10~50 (14~122 )
- - Storage Temperature: -40~70 (-40~158 )
- - Operating Humidity: 10%~90% non-condensing
- - Storage Humidity: 5%~95% non-condensing
System
Control Methods
- - Config Web Page
- - SNMP V1/V2/V3
- - Telnet
- - SSH
- - RMON
Firmware Upgrade : Local Upgrade
Reliability : Backup and Restore
Mechanical
Dimension : 261×181×44 mm
- - 10.28×7.13×1.73 inches
Product Weight : 1200 g (42.33 oz.)
Casing Material : Metal
Installation
- - Desktop
- - Rackmount via Brackets

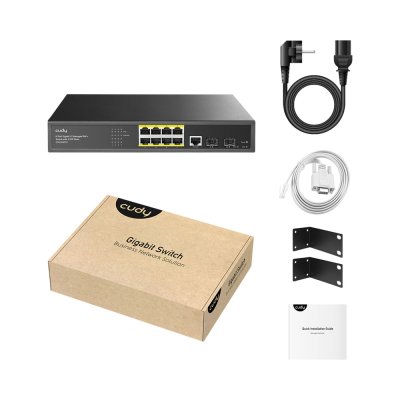

Package Content
- - GS2008PS2
- - Power Cord
- - Mounting Kit
- - Installation Guide
Ordering Information
Retail Package Dimension : 312×260×84 mm
- - 12.28×10.24×3.31 inches
Retail Package Weight : EU 1685 g (59.44 oz.)
Units per Carton : 20
Carton Net Weight : EU 15.9 kg (35.05 lbs)
Carton Gross Weight : EU 16.9 kg (37.26 lbs)
Carton Dimension : 54×43.5×33.2 cm
- - 21.26×17.13×13.07 inches
