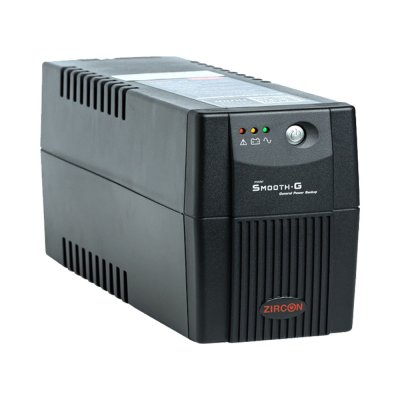

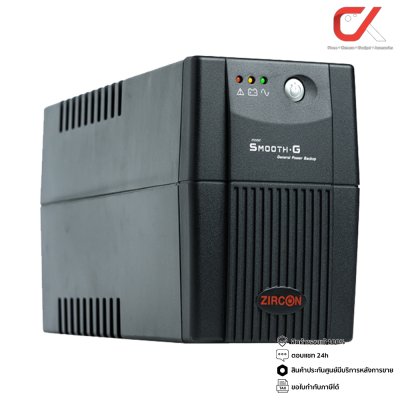

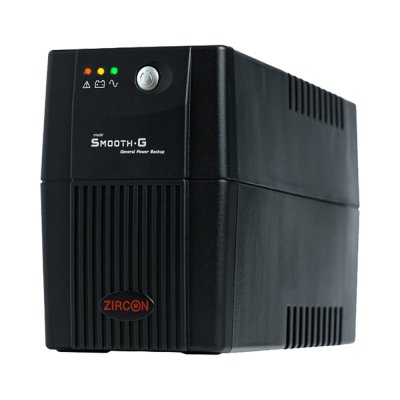

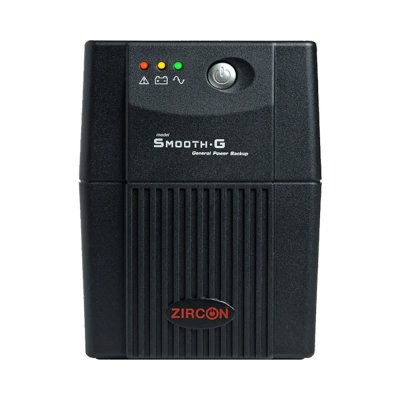

Zircon Smooth-G 1000Va 500w Ups เครื่องสำรองไฟ
รายละเอียด

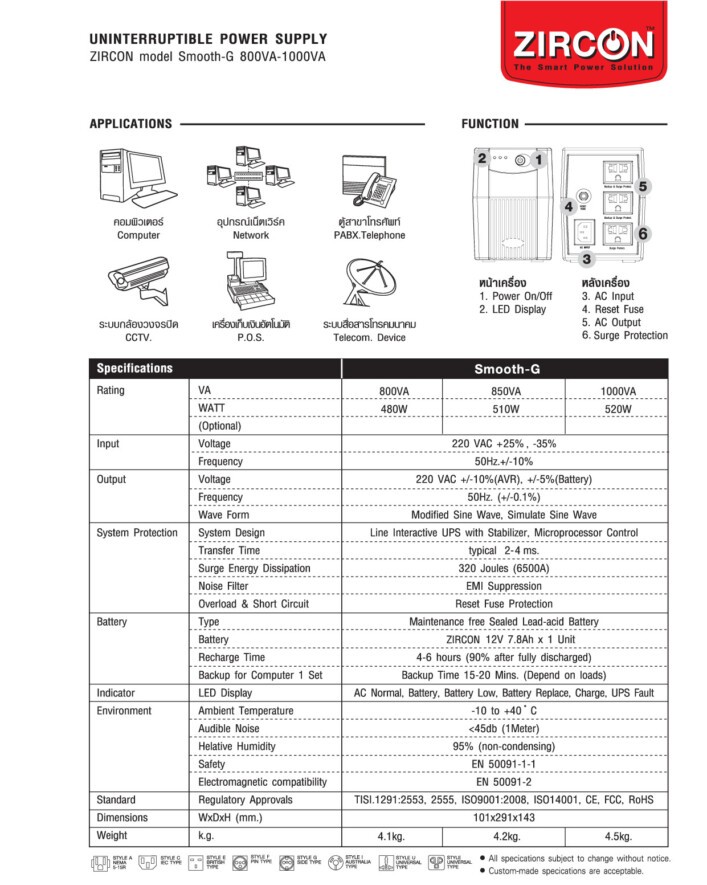

Input
- - Voltage : 220 VAC +25%,-35%
- - Frequency : 50Hz. +/-10%
Output
- - Voltage : 220 VAC +/-10% AVR, +/-5% Battery
- - Frequency : 50Hz. +/-0.1%
System Design

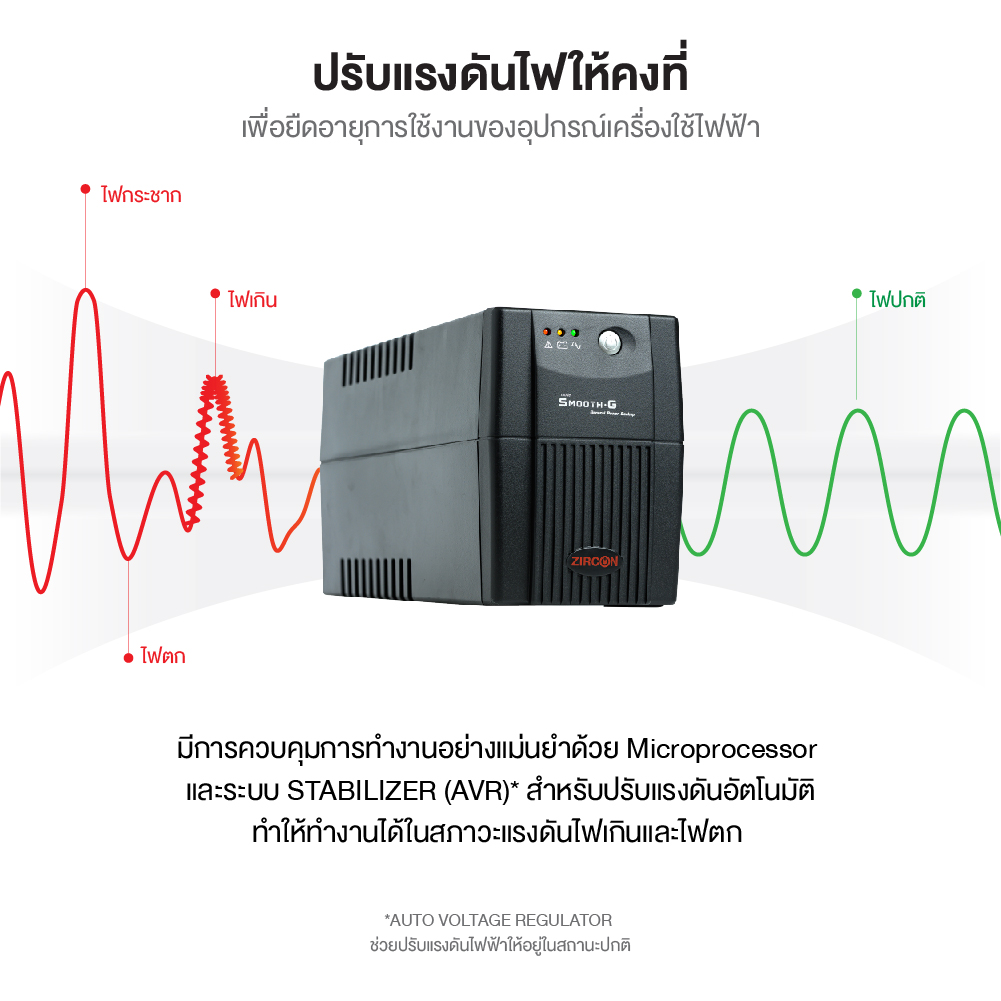

- - Line Interactive UPS with Stabilizer, Microprocessor Control
- - Transfer Time : Typical 2-4 ms.
- - Surge Energy Dissipation : 320 Joules 6500A
- - Noise Filter : EMI Suppression
- - Overload & Short Circuit : Reset Fuse Protection
Battery
- - Type Maintenance Free Sealed Lead-acid Battery
- - Battery ZIRCON : 12V 7.8Ah x 1 Unit
- - Recharge Time : 4-6 Hours 90% After Fully Discharged
- - Backup Time : Backup Time 15-20 Min. Depend on loads
Indicator

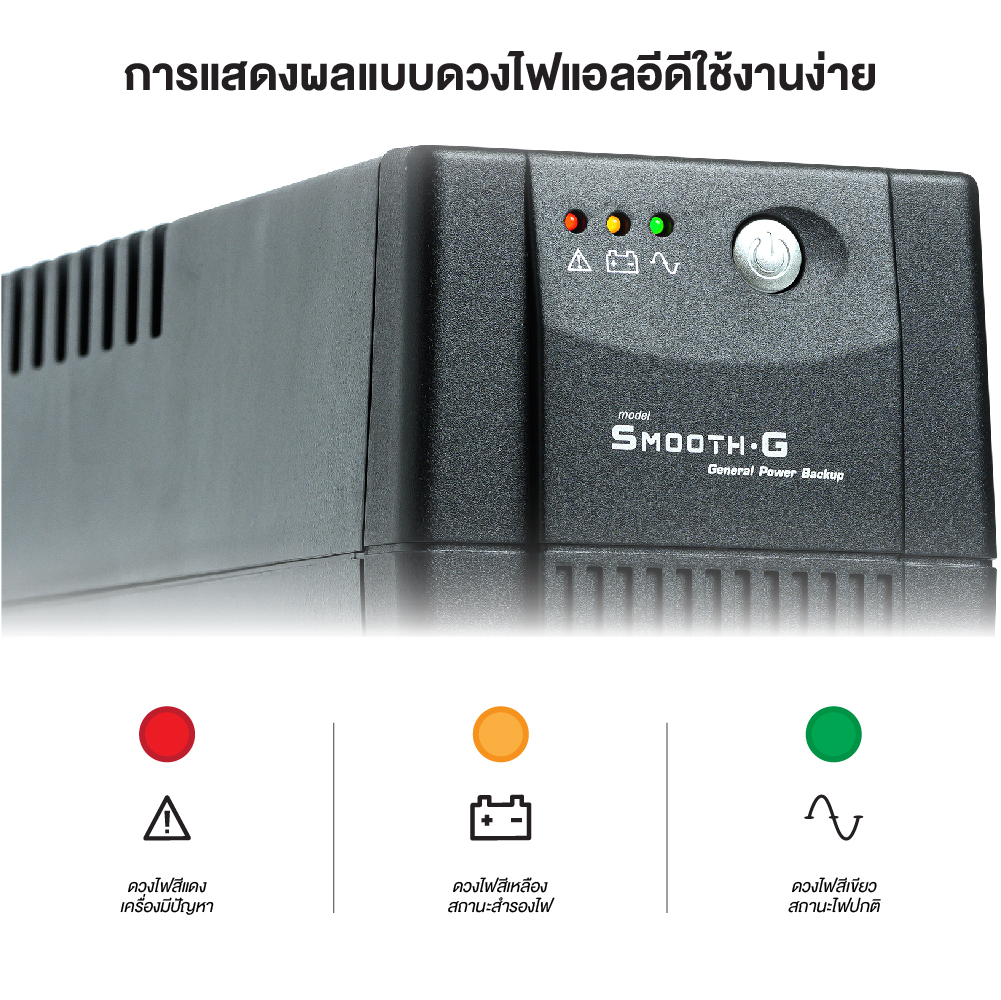

- - LCD Display Normal, Battery, Battery Low, Battery Replace, Charge, UPS Fault
Environment
- - Ambient Temperature : -10 to +40 ºC
- - Audible Noise : < 45db
- - Relative Humidity : 95% Non-Condensing
- - Safety : IEC/EN62040-1, IEC/EN60950-1
- - Electromagnetic : IEC/EN62040-2, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8
Standard
- - Regular Approvals : TISI1291:2553, 2555, ISO9001:2015, ISO14001, CE, FCC, RoHS
- - Dimensions : 101 x 291 x 143 mm.
- - Weight : 4.5kg.
- - Warranty : 2 ปี
