TP-Link EAP225 AC1350 Omada Wireless MU-MIMO Gigabit Ceiling Access Point สำหรับองค์กร
รายละเอียด
- - Fast Dual-Band Wi-Fi : Simultaneous 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.
- - Integrated into Omada SDN : Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- - Centralized Management : Cloud access and Omada app for ultra convenience and easy management.
- - Seamless Roaming : Even video streams and voice calls are unaffected as users move between locations.
- - PoE Support : Support both standard 802.3af and Passive PoE (PoE adapter included) for flexible installations.
- - Secure Guest Network : Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.
- - Advanced Wireless Tech : Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.
- - ประกันตลอดอายุการใช้งาน
HARDWARE FEATURES
- - Interface : Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE)
- - Physical Security Lock Yes
- - Button : Reset
Power Supply
- - 802.3af/at PoE
- - 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Max. Power Consumption
- - EU : 10.5 W
- - US : 12.6 W
- - Dimensions ( W x D x H ) : 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Antenna
- - 3 Internal Omni
- - 2.4 GHz: 4 dBi
- - 5 GHz: 5 dBi
- - Mounting : Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
- - Wireless Standards : IEEE 802.11ac/n/g/b/a
- - Frequency : 2.4 GHz and 5 GHz
Signal Rate
- - 5 GHz:Up to 867 Mbps
- - 2.4 GHz:Up to 450 Mbps
Wireless Functions
- - Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- - Enable/Disable Wireless Radio
- - Automatic Channel Assignment
- - Transmit Power Control (Adjust Transmit Power on dBm)
- - QoS(WMM)
- - Seamless Roaming
- - Omada Mesh
- - Band Steering
- - Load Balance
- - MU-MIMO
- - Airtime Fairness
- - Beamforming
- - Rate Limit
- - Reboot Schedule
- - Wireless Schedule
- - Wireless Statistics based on SSID/AP/Client
Wireless Security
- - Captive Portal Authentication
- - Access Control
- - Wireless Mac Address Filtering
- - Wireless Isolation Between Clients
- - SSID to VLAN Mapping
- - Rogue AP Detection
- - 802.1X Support
Transmission Power
- - CE :
20 dBm(2.4 GHz, EIRP)
23 dBm(5 GHz, EIRP)
- - FCC :
24 dBm(2.4 GHz)
22 dBm(5 GHz)
Management Features
- - Omada App : Yes
- Centralized Management
- - Omada Hardware Controller OC300
- - Omada Hardware Controller OC200
- - Omada Software Controller
- - Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)
Cloud Access : Yes, through
- - OC300
- - OC200
- - Omada Software Controller
- - Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)
- - Email Alerts : Yes
- - LED ON/OFF Control : Yes
- - Management MAC Access Control : Yes
- - SNMP : v1,v2c
- - System Logging Local/Remote Syslog : Local/Remote Syslog
- - SSH : Yes
- - Web-based Management : HTTP/HTTPS
- - L3 Management : Yes
- - Multi-site Management : Yes
- - Management VLAN : Yes
- - Zero-Touch Provisioning : Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)
OTHERS
- - Certification : CE, FCC, RoHS
- - System Requirements : Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment
- - Operating Temperature: 040 (32104 )
- - Storage Temperature: -4070 (-40158 )
- - Operating Humidity: 1090% RH non-condensing
- - Storage Humidity: 590% RH non-condensing

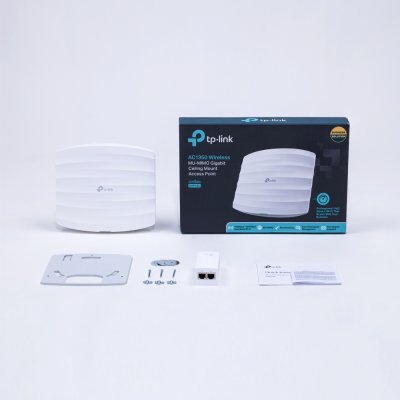

Package Content
- - AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
- - Passive PoE Adapter
- - Power Cord
- - Mounting Kits
- - Installation Guide
