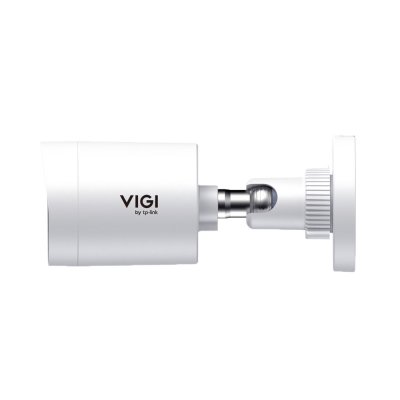

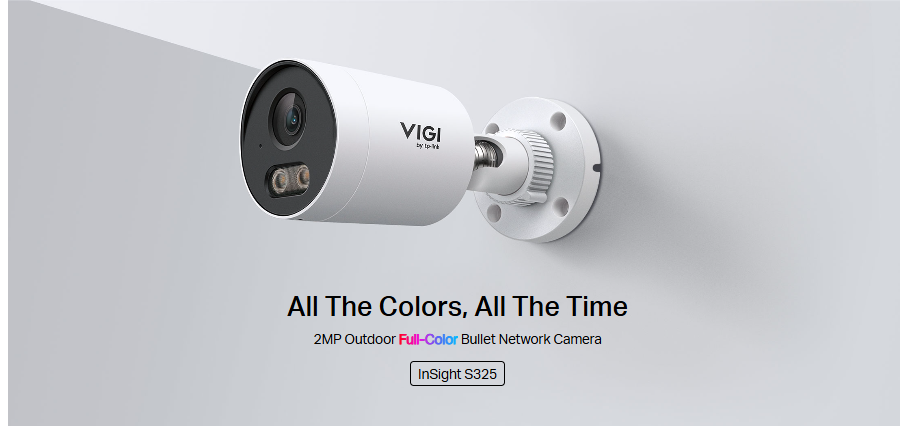

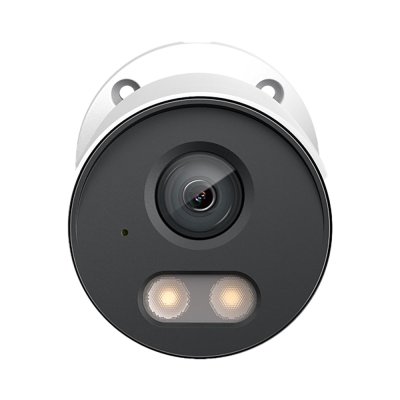

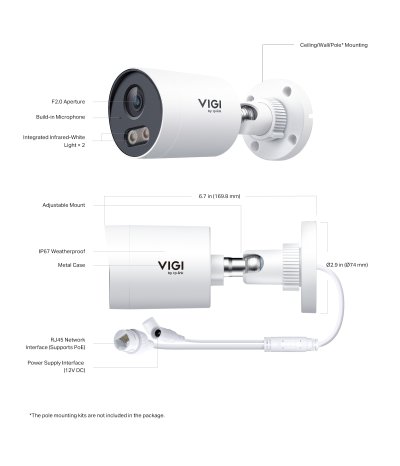

TP-Link VIGI Insight S325 2MP Full Color Outdoor Network Camera ภาพสี 24 ชม. มีไมค์ในตัว
คุณสมบัติ
- - ความละเอียดสูง 2MP และสีเต็มรูปแบบ 24 ชม

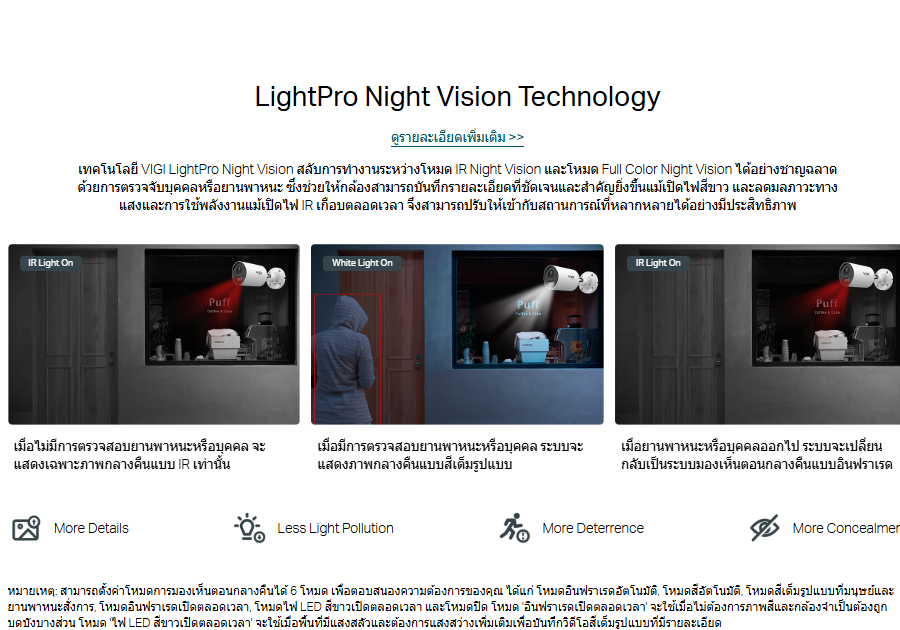

- - LightPro Night Vision

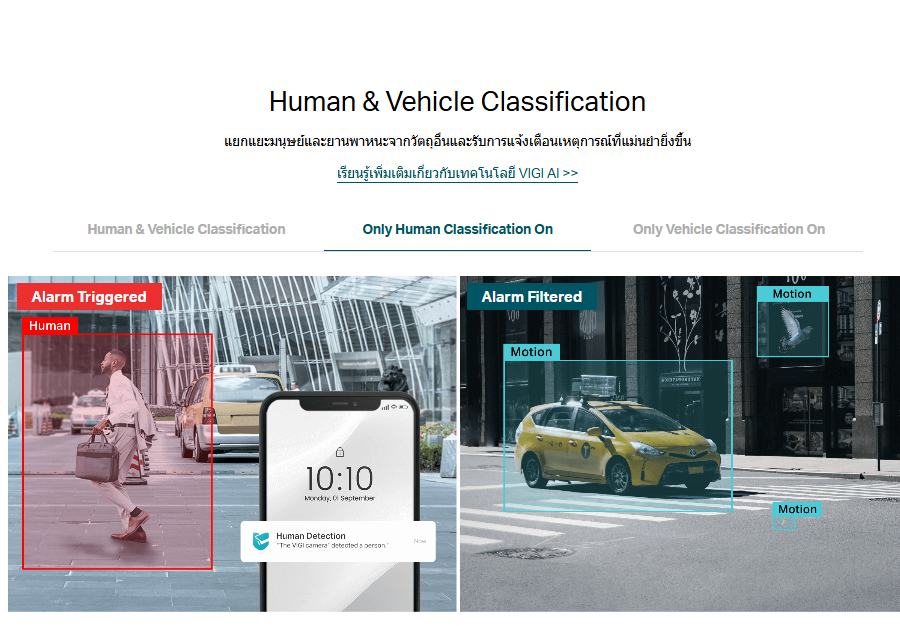

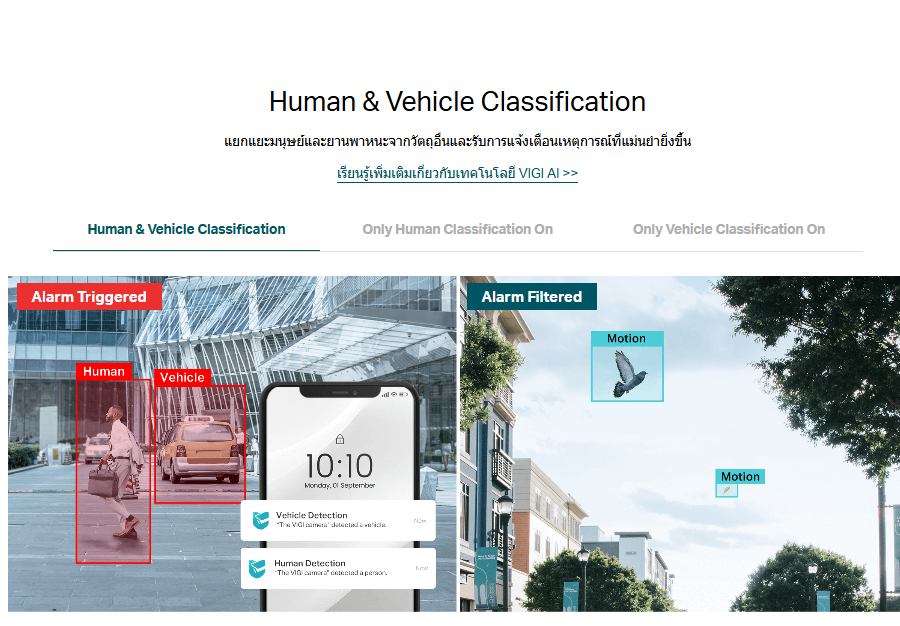

- - การจำแนกประเภทคนและยานพาหนะ
- - Smart Detection
- - เทคโนโลยีการเพิ่มประสิทธิภาพวิดีโออัจฉริยะ
- - มีไมโครโฟนในตัว
- - IP67 ทนฝนและแดด
- - เทคโนโลยีการบีบอัดข้อมูล H.265+
- - ประกัน 3 ปี
CAMERA
Image Sensor : 1/3 Progressive Scan CMOS
Shutter Speed : 1/3 to 1/10000 s
Slow Shutter : Yes
Minimum Illumination : 0.01 Lux; 0 Lux with IR/White light
Day/Night Mechanism : IR Cut Filter
Day/Night Switch : Unified/ Scheduled/ Auto
LENS
Type : Fixed Focal Lens
Focal Length : 2.8/4/6 mm
Aperture : F2.0
FOV
- - 2.8 mm : Horizontal FOV: 98.8°, Vertical FOV: 53.5°, Diagonal FOV: 117°
- - 4 mm : Horizontal FOV: 75.2°, Vertical FOV: 40.8°, Diagonal FOV: 88.3°
- - 6 mm : Horizontal FOV: 49.8°, Vertical FOV: 27.6°, Diagonal FOV: 57.7°
Lens Mount : M12*P 0.5
DORI Distance
- - 2.8 mm
Detect: 154.2 ft (47 m)
Observe: 62.3 ft (19 m)
Recognize: 29.5 ft (9 m)
Identify: 16.4 ft (5 m)
- - 4 mm
Detect: 193.6 ft (59 m)
Observe: 82 ft (25 m)
Recognize: 39.4 ft (12 m)
Identify: 19.7 ft (6 m)
- - 6 mm
Detect: 292 ft (89 m)
Observe: 121.4 ft (37 m)
Recognize: 59.1 ft (18 m)
Identify: 29.5 ft (9 m)
Angle Adjustment (Manual)
Range : Pan 0° to 360°, Tilt 0° to 90°, Rotation 0° to 360°
ILLUMINATOR
Illuminator On/Off Contro : Auto/Scheduled/Always on/Always off
Integrated Infrared-White LED
- - Quantity: 2
- - IR Range: 98 ft (30 m)
- - White LED Range: 98 ft (30 m)
- - IR Wavelength: 850 nm
VIDEO
Max. Resolution : 1920 x 1080
Main Stream
- - Frame Rate：
50Hz : 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz : 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- - Resolution:
1920x1080, 1280x960, 1280x720
- - Note : If the image rotation is set to 90°, the frame rate only supports up to 20fps.
Sub-Stream
- - Frame Rate
50Hz : 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz : 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- - Resolution
848x480, 704x576, 640x480, 640x360, 352x288, 320x240
- - Note : If the image rotation is set to 90°, the frame rate only supports up to 20fps.
Bit Rate Control : CBR, VBR
Video Compression
- - Main Stream: H.265+/H.265/H.264+/H.264
- - Sub-Stream: H.265/H.264
H.264 Type : High Profile
H.264+ : Main Stream Supported
H.265 Type : Main Profile
H.265+ : Main Stream Supported
Video Bit Rate
- - Main Stream: 256 Kbps to 4 Mbps
- - Sub-Stream: 64 Kbps to 512 Kbps
Image Settings
- - Mirror
- - Brightness
- - Contrast
- - Saturation
- - Sharpness
- - Exposure
- - WDR
- - White Balance
- - Prevent Overexposure to Infrared Light
- - HLC Adjustable by Client Software
Image Enhancement : BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range : DWDR
SNR : 52 dB
Image Parameters Switch : Yes
Privacy Mask : Up to 4 Masks
ROI : 1 Region
OSD Setting : Yes
AUDIO
Audio Communication : N/A
Audio Input : Yes (Built-in Microphone)
Audio Output : N/A
Audio Compression : Yes
Audio Sampling Rate : 8KHz
Environment Noise Filtering : Yes
Audio Bit Rate : 64 Kbps(G.711 alaw)
NETWORK
Protocol : TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, 802.1x
ONVIF : Yes
API : ONVIF Profile S/T
Simultaneous Live View : 3 Main Streams & 3 Sub-Streams
Client : VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool
Web Browser
- - Google Chrome® 57 and above
- - Firefox® 52 and above
- - Safari® 11 and above
- - Microsoft® Edge 91 and above
Cloud : Yes
Security : Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event
- - Intrusion Detection
- - Line-Crossing Detection
- - Region Entering Detection
- - Region Exiting Detection
- - People Detection
- - Vehicle Detection
Basic Event
- - Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
- - Video Tampering Detection
- - Exception ( Illegal Login)
Alarm Linkage
- - Sending Email
- - Send to Alarm Server
- - Upload to FTP
- - Message Push
Deep Learning Function
People & Vehicle Analytics : N/A
INTERFACES
Network Interface : 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm : N/A
Reset Button : N/A
Power : DC Power Port
On-board Storage : N/A
Built-in Microphone : Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker : N/A
Audio : N/A
GENERAL
Operating Temperature : -30 to 60 °C
Storage Temperature : -40 to 60 °C
Operating Humidity : 95% or Less (Non-Condensing)
Storage Humidity : 95% or Less (Non-Condensing)

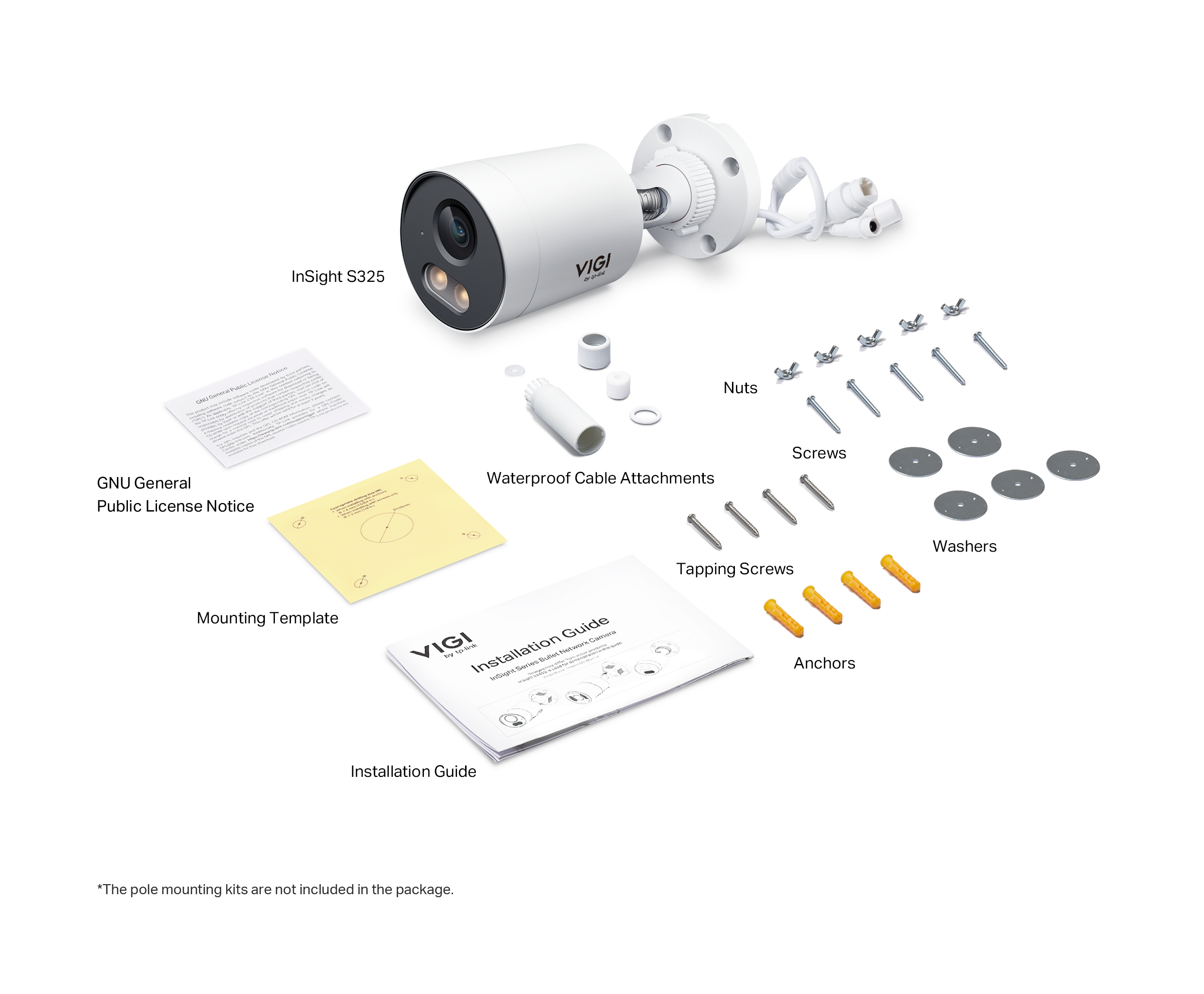

Package Content
- - VIGI Network Camera
- - Quick Start Guide
- - Waterproof Cable Attachments
- - Mounting Accessories
Material : Metal
Net Weight : 0.353 Kg
Power Supply
- - 12V DC ± 5%, Max. 7.4W, 5.5 mm Coaxial Power Plug
- - PoE: 802.3af/at, class 0, Max. 8W
Protection : IP67

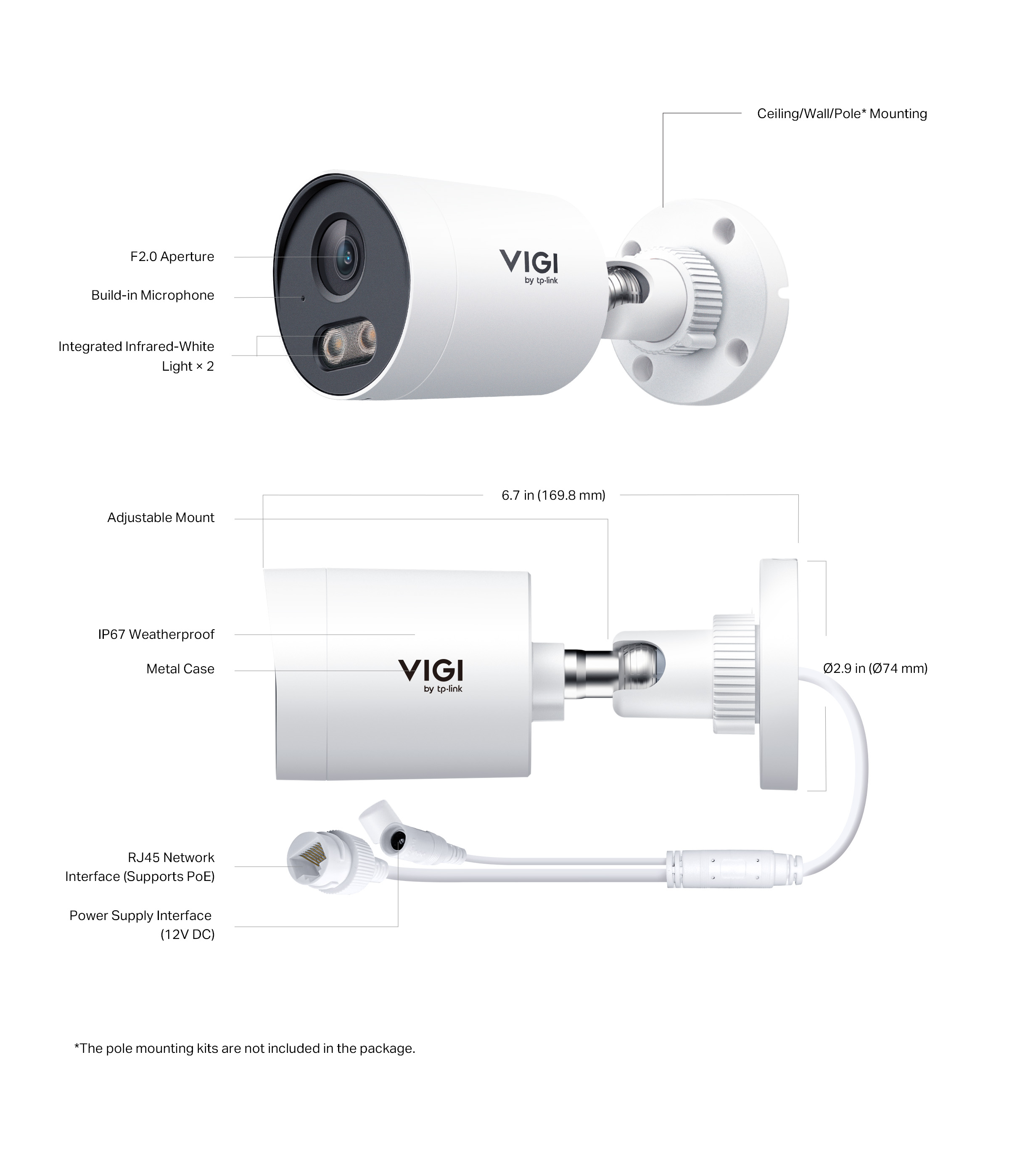

Product Dimensions (L x W x H) : 6.7 × 2.9 × 2.9 in (169.8 × 74 × 74 mm)
Certifications : CE, FCC, BSMI, VCCI, KC, NTRA
