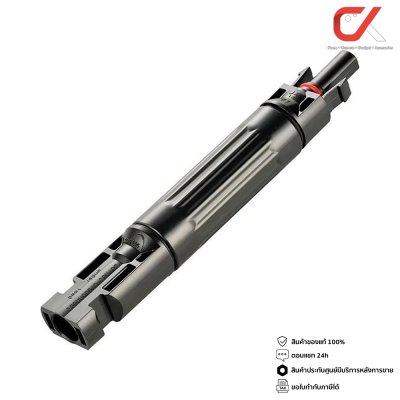

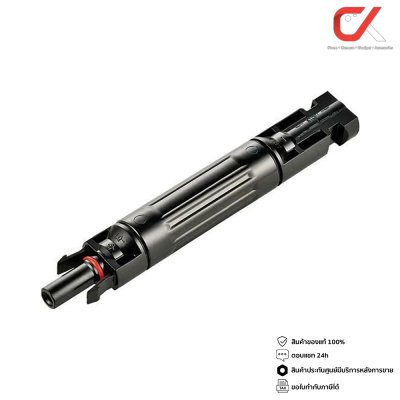

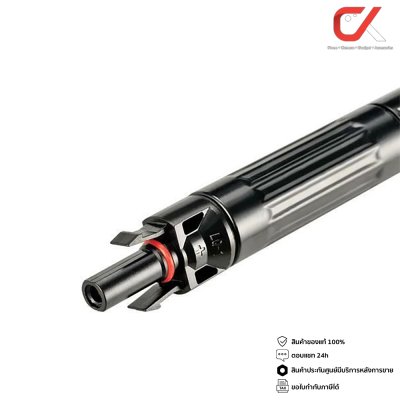

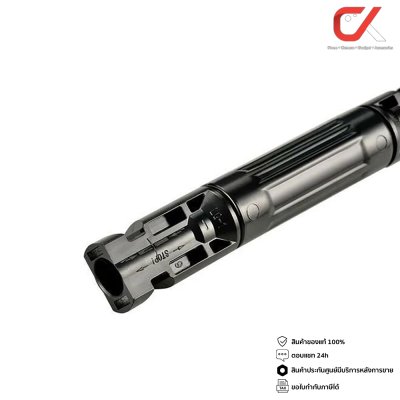

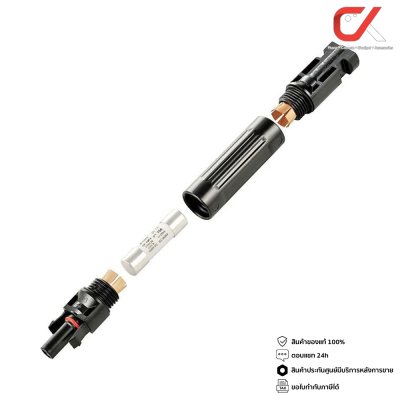

Lumira MC4 FS MC4 Fuse Case Connector 30A 1000VDC อุปกรณ์ต่อโซล่าเซลล์
รายละเอียด
- - Contact material: copper, tin plated
- - Insulator material: PPO
- - Rated current: 15/20/30A according to the fuse
- - Rated voltage: 1000V DC
- - Test voltage: 6000V 50Hz, 1min
- - Contact resistance: 0.5mΩ
- - Waterproof grade: IP67
- - Flame retardant class: UL94-V0
- - Connecting system: crimp connection
- - Working temperature: -40-125
