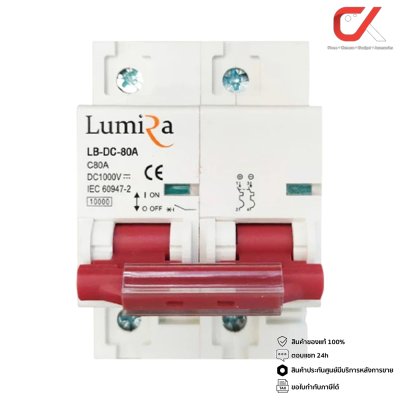

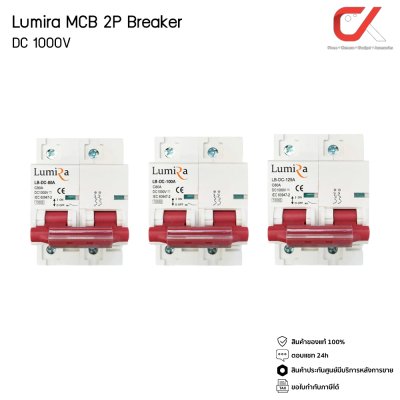

Lumira MCB 2P Breaker DC 1000VDC เบรกเกอร์แบบเกาะราง

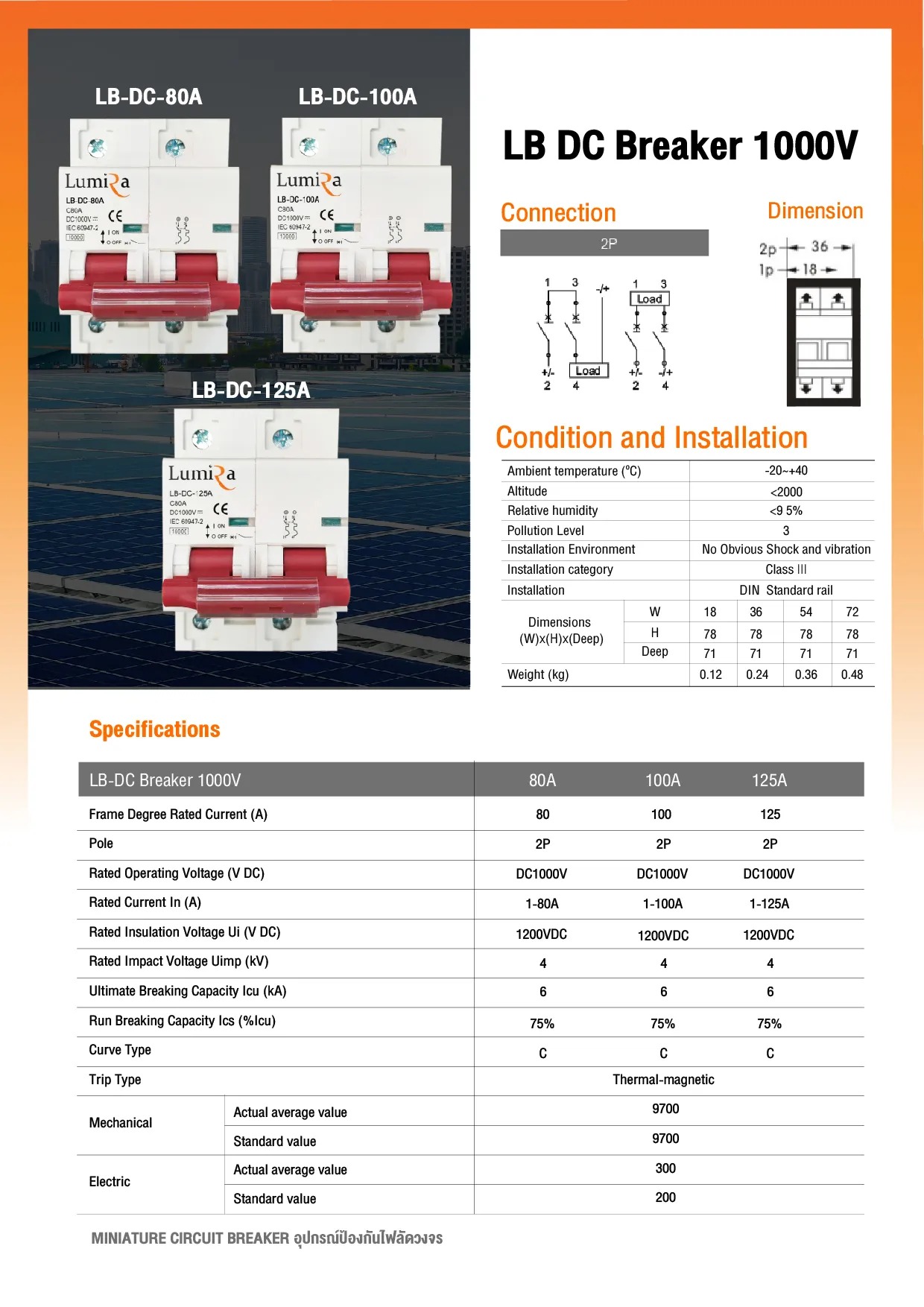

Specifications
- - LB-DC Breaker 1000V 80A 100A 125A
- - Frame Degree Rated Current (A) 80 100 125
- - Pole 2P 2P 2P
- - Rated Operating Voltage (V DC) DC1000V DC1000V DC1000V
- - Rated Current In (A) 1-80A 1-100A 1-125A
- - Rated Insulation Voltage Ui (V DC) 1200VDC 1200VDC 1200VDC
- - Rated Impact Voltage Uimp (kV) 4 4 4
- - Ultimate Breaking Capacity Icu (kA) 6 6 6
- - Run Breaking Capacity Ics (%Icu) 75% 75% 75%
- - Curve Type C C C
- - Trip Type Thermal-magnetic
- - Mechanical Actual average value 9700
- - Standard value 9700
- - Electric Actual average value 300
- - Standard value 300
